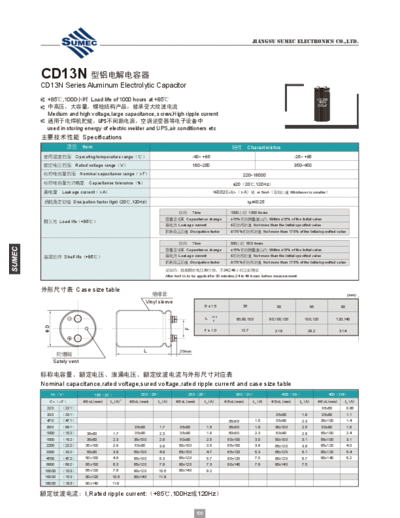

Image preview - the first page of the document



>> Download Sumec [screw] JB (CD13N) Series documenatation <<

Text preview - extract from the document

                                                                                                                JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD13N
CD13N Series Aluminum Electrolytic Capacitor
  +85,1000 Load life of 1000 hours at +85                                                                                                                  CD13N
                                                                                                                                                            450V
                                                                                                                                                           220F

  Medium and high voltage,large capacitance, screw,High ripple current
  UPS
  used in storing energy of electric welder and UPS,air conditioners etc
 Specifications
                   Item                                                                                       Characteristics
              Operating temperature range                                    -40~ +85                                                  -25~ +85
              Rated voltage rangeV                                           160~250                                                   350~450
                   Nominal capacitance rangeF                                                             220~18000
                      Capacitance tolerance%
