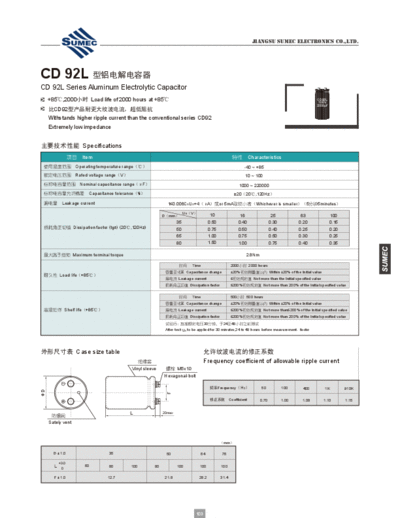

Image preview - the first page of the document



>> Download Sumec [screw] JD (CD92L) Series documenatation <<

Text preview - extract from the document

                                                                                                                   JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD 92L
CD 92L Series Aluminum Electrolytic Capacitor
    +85,2000 Load life of 2000 hours at +85                                                                                                        CD92L
                                                                                                                                                    100V
                                                                                                                                                   2200F
    CD92
    Withstands higher ripple current than the conventional series CD92
    Extremely low impedance


 Specifications
                    Item                                                                                         Characteristics
                  Operating temperature range                                                               -40 ~ +85
                  Rated voltage rangeV                                                                        10 ~ 100
                    Nominal capacitance rangeF                                                           1000 ~ 220000
                       Capacitance tolerance%
