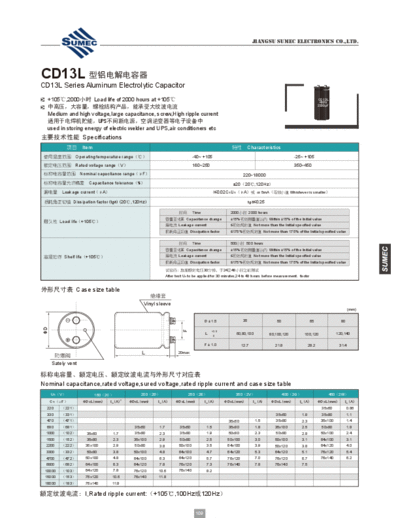

                                                                                                            JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD13L
CD13L Series Aluminum Electrolytic Capacitor
  +105,2000 Load life of 2000 hours at +105                                                                                                          CD13L
                                                                                                                                                      400V
                                                                                                                                                     2200F

  Medium and high voltage,large capacitance, screw,High ripple current
  UPS
  used in storing energy of electric welder and UPS,air conditioners etc
 Specifications
                  Item                                                                                    Characteristics
              Operating temperature range                                -40~ +105                                                 -25~ +105
              Rated voltage rangeV                                       160~250                                                   350~450
                  Nominal capacitance rangeF                                                          220~18000
                     Capacitance tolerance%
