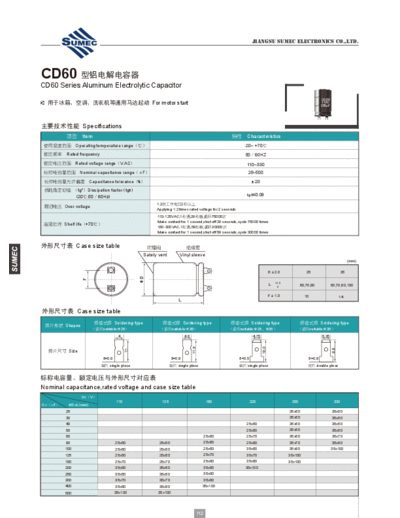

Image preview - the first page of the document



>> Download Sumec [snap-in] MA (CD60) Series documenatation <<

Text preview - extract from the document

                                                                                                            JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD60
CD60 Series Aluminum Electrolytic Capacitor
                                                                                                                                                       CD60
   For motor start                                                                                                                                      110V
                                                                                                                                                       250F




 Specifications
                Item                                                                                   Characteristics
              Operating temperature range                                                             -20~ +70
        Rated frequency                                                                               5060HZ
              Rated voltage rangeV.AC                                                                  110~330
               Nominal capacitance rangeF                                                               25~500
                    Capacitance tolerance%
