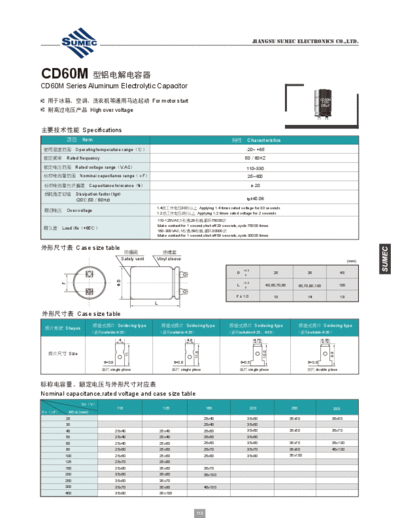

Image preview - the first page of the document



>> Download Sumec [snap-in] MB (CD60M) Series documenatation <<

Text preview - extract from the document

                                                                                                              JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD60M
CD60M Series Aluminum Electrolytic Capacitor
                                                                                                                                                       CD60M
   For motor start                                                                                                                                      110V
                                                                                                                                                       250F
   High over voltage


 Specifications
                Item                                                                                       Characteristics
              Operating temperature range                                                               -20~ +65
        Rated frequency                                                                                5060HZ
              Rated voltage rangeV.AC                                                                   110~330
               Nominal capacitance rangeF                                                                  25~400
                    Capacitance tolerance%
