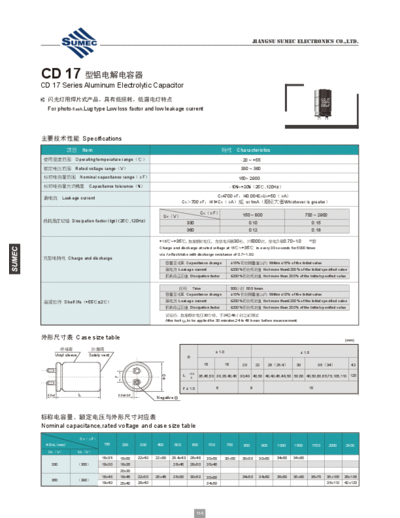

Image preview - the first page of the document
Sumec [snap-in] FA (CD17) Series


>> Download Sumec [snap-in] FA (CD17) Series documenatation <<

Text preview - extract from the document
                                                                                                                                      JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD 17
CD 17 Series Aluminum Electrolytic Capacitor
                                                                                                                                                                               CD 17
                                                                                                                                                                               330V
                                                                                                                                                                               200F
  For photo-fiash,Lug type Low loss factor and low leakage current




 Specifications
                         Item                                                                                                Characteristics
                 Operating temperature range                                                                                   -20 ~ +55
                 Rated voltage rangeV                                                                                         330 ~ 360
                     Nominal capacitance rangeF                                                                              150~ 2900
                           Capacitance tolerance%                                                                         -10%~+20%25,120Hz
                                                                                        CR700Fl0.004CRUR+50A
          Leakage current
                                                                               CR700Fl1
