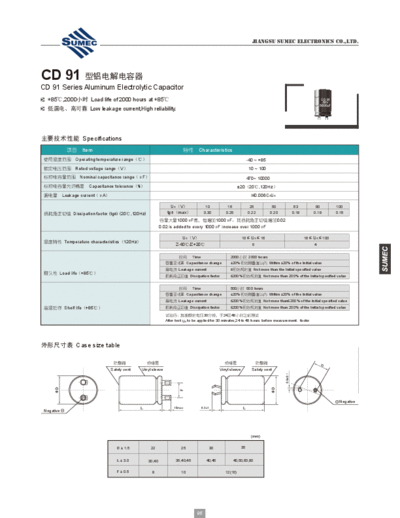

Image preview - the first page of the document



>> Download Sumec [snap-in] GG (CD91) Series documenatation <<

Text preview - extract from the document

                                                                                                                      JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD 91
CD 91 Series Aluminum Electrolytic Capacitor
  +85,2000 Load life of 2000 hours at +85                                                                                                                            CD 91
                                                                                                                                                                      63V
                                                                                                                                                                    6800F
   Low leakage current,High reliability.




 Specifications
                 Item                                                         Characteristics
               Operating temperature range                                                                          -40 ~ +85
               Rated voltage rangeV                                                                                  10 ~ 100
                 Nominal capacitance rangeF                                                                         470~ 10000
                    Capacitance tolerance%
