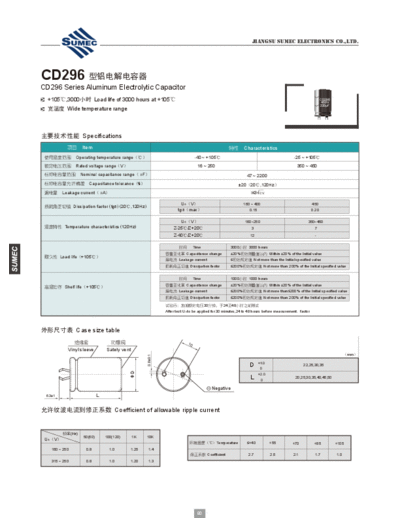

Image preview - the first page of the document



>> Download Sumec [snap-in] GJ (CD296) Series documenatation <<

Text preview - extract from the document

                                                                                                                 JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD296
CD296 Series Aluminum Electrolytic Capacitor
  +105,3000 Load life of 3000 hours at +105                                                                                                                  CD296
                                                                                                                                                              450V
                                                                                                                                                             220F
   Wide temperature range



 Specifications
                 Item                                                                                       Characteristics
  Operating temperature range                                                   -40 ~ +105                                               -25 ~ +105
  Rated voltage rangeV                                                            16 ~ 250                                                 350 ~ 450
  Nominal capacitance rangeF                                                                                  47 ~ 2200
  Capacitance tolerance%
