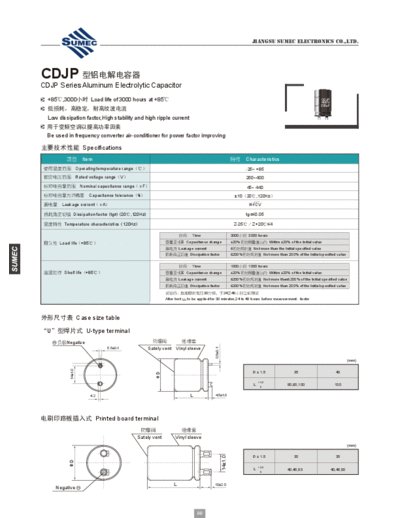

Image preview - the first page of the document



>> Download Sumec [snap-in] GK (CDJP) Series documenatation <<

Text preview - extract from the document

                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CDJP
CDJP Series Aluminum Electrolytic Capacitor
  +85,3000 Load life of 3000 hours at +85                                                                                                           CDJP
                                                                                                                                                    400V
                                                                                                                                                    220F

  Low dissipation factor,High stability and high ripple current

 Be used in frequency converter air-conditioner for power factor improving

 Specifications
                      Item                                                                                       Characteristics
                    Operating temperature range                                                                  -25~ +85
                    Rated voltage rangeV                                                                         250~400
                     Nominal capacitance rangeF                                                                  45~ 440
                         Capacitance tolerance%
