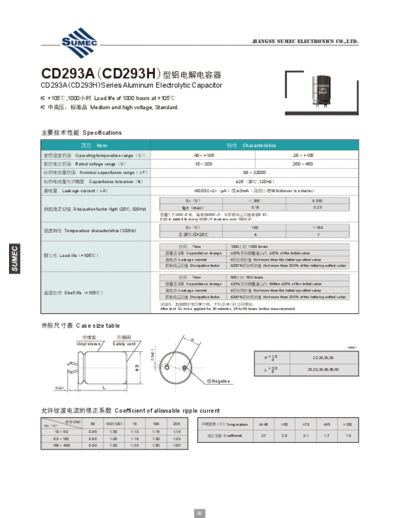

Image preview - the first page of the document



>> Download Sumec [snap-in] HA-HB (CD293A-CD293H) Series documenatation <<

Text preview - extract from the document

                                                                                                                   JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD293A(CD293H)
CD293A(CD293H)Series Aluminum Electrolytic Capacitor                                                                                                     CD293H
                                                                                                                                                          100V
                                                                                                                                                          390F

 +105,1000 Load life of 1000 hours at +105
  Medium and high voltage, Standard.



 Specifications
                            Item                                                                              Characteristics
 Operating temperature range                                                     -40 ~ +105                                                -25 ~ +105
 Rated voltage rangeV                                                               10 ~ 200                                               250 ~ 450

 Nominal capacitance rangeF                                                                                   39 ~ 22000

 Capacitance tolerance%
