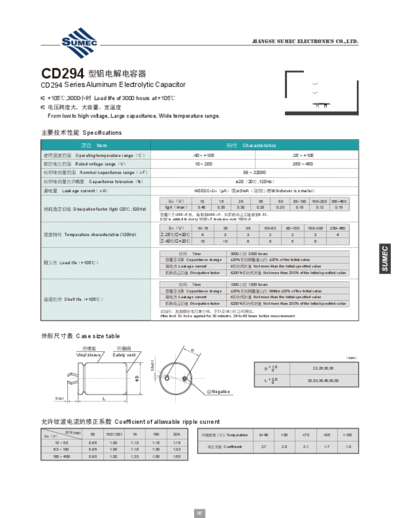

Image preview - the first page of the document



>> Download Sumec [snap-in] HF-HK (CD294) Series documenatation <<

Text preview - extract from the document

                                                                                                                         JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD294
CD294 Series Aluminum Electrolytic Capacitor                                                                                                                        CD294
                                                                                                                                                                     450V
                                                                                                                                                                    270F

  +105,3000 Load life of 3000 hours at +105

  From low to high voltage, Large capacitance, Wide temperature range.

 Specifications
                             Item                                                                              Characteristics
                Operating temperature range                                       -40 ~ +105                                                      -25 ~ +105
                Rated voltage rangeV                                                 10 ~ 200                                                      250 ~ 450
                 Nominal capacitance rangeF                                                                       39 ~ 22000

 Capacitance tolerance%
