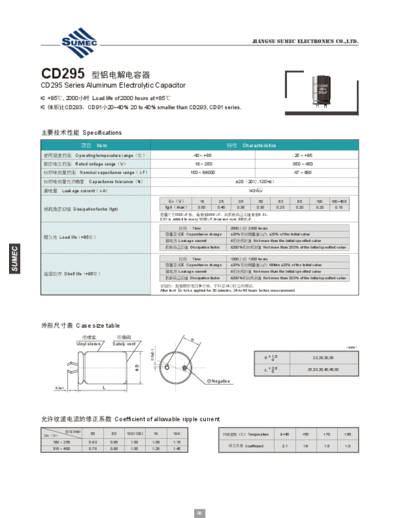

Image preview - the first page of the document



>> Download Sumec [snap-in] HJ (CD295) Series documenatation <<

Text preview - extract from the document

                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD295
CD295 Series Aluminum Electrolytic Capacitor                                                                                                                  CD295
                                                                                                                                                               450V
                                                                                                                                                              220F

  +85, 2000 Load life of 2000 hours at +85
  CD293CD9120~40% 20 to 40% smaller than CD293, CD91 series.



 Specifications
                            Item                                                                               Characteristics
 Operating temperature range                                                      -40 ~ +85                                                   -25 ~ +85
 Rated voltage rangeV                                                                16 ~ 250                                                 350 ~ 450

 Nominal capacitance rangeF                                                     150 ~ 68000                                                   47 ~ 680

 Capacitance tolerance%
