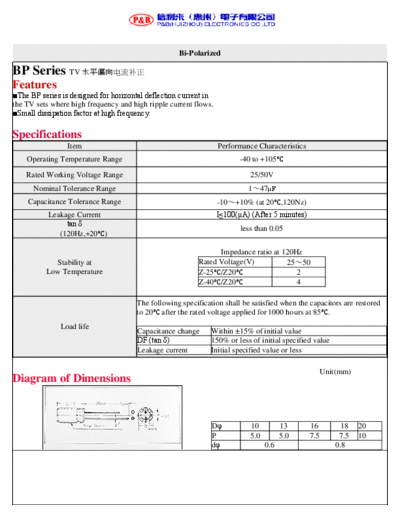

Image preview - the first page of the document
P&B [bi-polar radial] BP Series


>> Download P&B [bi-polar radial] BP Series documenatation <<

Text preview - extract from the document
                                                    Bi-Polarized

BP Series TV
Features
The BP series is designed for horizontal deflection current in
the TV sets where high frequency and high ripple current flows.
Small dissipation factor at high frequency.

Specifications
                 Item                                             Performance Characteristics
    Operating Temperature Range                                         -40 to +105

    Rated Working Voltage Range                                            25/50V
      Nominal Tolerance Range                                              147F
    Capacitance Tolerance Range                                   -10+10% (at 20,120Nz)
           Leakage Current                                        I100(A) (After 5 minutes)
                tan
                                                                        less than 0.05
              (120Hz,+20)

                                                                Impedance ratio at 120Hz
            Stability at                                  Rated Voltage(V)          2550
          Low Temperature                                 Z-25/Z20                     2
                                                          Z-40/Z20                     4

                                      The following specification shall be satisfied when the capacitors are restored
                                      to 20 after the rated voltage applied for 1000 hours at 85.
              Load life
                                       Capacitance change     Within
