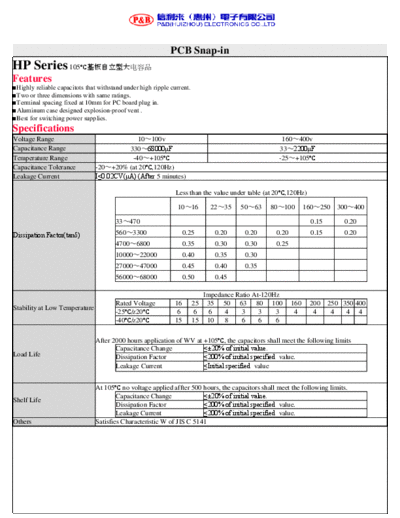

Image preview - the first page of the document
![P&B [snap-in] HP Series](/pics/5c1bd521317f1.gif)
>> Download P&B [snap-in] HP Series documenatation <<
Text preview - extract from the document
PCB Snap-in
HP Series 105
Features
Highly reliable capacitots that withstand under high ripple current.
Two or three dimensions with same ratings.
Terminal spacing fixed at 10mm for PC board plug in.
Aluminum case designed explosion-proof vent .
Best for switching power supplies.
Specifications
Voltage Range 10100v 160400v
Capacitance Range 33068000F 332200F
Temperature Range -40+105 -25+105
Capacitance Tolerance -20+20% (at 20,120Hz)
Leakage Current I0.02CV(A) (After 5 minutes)
Less than the value under table (at 20,120Hz)
1016 2235 5063 80100 160250 300400
33470 0.15 0.20
Dissipation Factor(tan) 5603300 0.25 0.20 0.20 0.20 0.15 0.20
47006800 0.35 0.30 0.30 0.25
1000022000 0.40 0.35 0.30
2700047000 0.45 0.40 0.35
5600068000 0.50 0.45
Impedance Ratio At-120Hz
Rated Voltage 16 25 35 50 63 80 100 160 200 250 350 400
Stability at Low Temperature
-25/z20 6 6 6 4 3 3 3 4 4 4 4 4
-40/z20 15 15 10 8 6 6 6
After 2000 hours application of WV at +105, the capacitors shall meet the following limits
Capacitance Change ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
