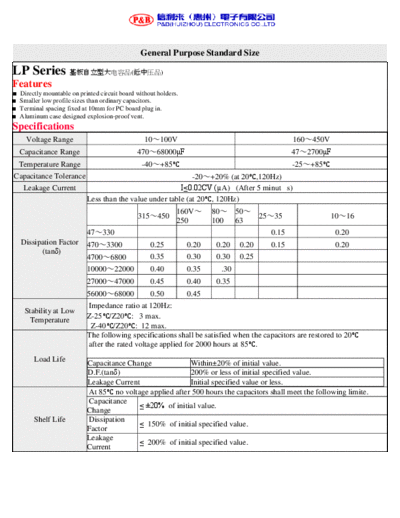

Image preview - the first page of the document



>> Download P&B [snap-in] LP Series documenatation <<

Text preview - extract from the document

                                               General Purpose Standard Size

LP Series ()
Features
 Directly mountable on printed circuit board without holders.
 Smaller low profile sizes than ordinary capacitors.
 Terminal spacing fixed at 10mm for PC board plug in.
 Aluminum case designed explosion-proof vent.
Specifications
     Voltage Range                              10100V                                      160450V
  Capacitance Range                          47068000F                                      472700F
  Temperature Range                            -40+85                                       -25+85
Capacitance Tolerance                                        -20+20% (at 20,120Hz)
  Leakage Current                                        I0.02CV (A) (After 5 minut s)
                           Less than the value under table (at 20, 120Hz)
                                                            160V       80 50
                                              315450                          2535                      1016
                                                            250        100 63
                           47330                                                0.15                     0.20
   Dissipation Factor      4703300                0.25          0.20   0.20   0.20   0.15                0.20
         (tan)
                           47006800               0.35          0.30   0.30   0.25
                           1000022000             0.40          0.35    .30
                           2700047000             0.45          0.40   0.35
                           5600068000            0.50        0.45
                            Impedance ratio at 120Hz:
    Stability at Low
     Temperature           Z-25/Z20: 3 max.
                             Z-40/Z20: 12 max.
                           The following specifications shall be satisfied when the capacitors are restored to 20
                            after the rated voltage applied for 2000 hours at 85.
       Load Life           Capacitance Change            Within
