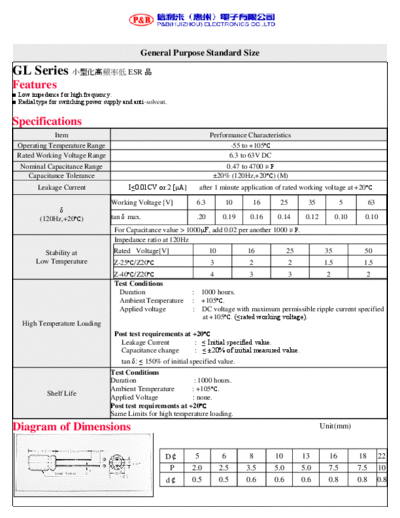

Image preview - the first page of the document



>> Download P&B [radial thru-hole] GL Series documenatation <<

Text preview - extract from the document

                                               General Purpose Standard Size

GL Series  ESR
Features
 Low impedance for high frequency.
 Radial type for switching power supply and anti-solvent.


Specifications
             Item                                                     Performance Characteristics
 Operating Temperature Range                                                 -55 to +105
 Rated Working Voltage Range                                                 6.3 to 63V DC
  Nominal Capacitance Range                                                 0.47 to 4700F
    Capacitance Tolerance
