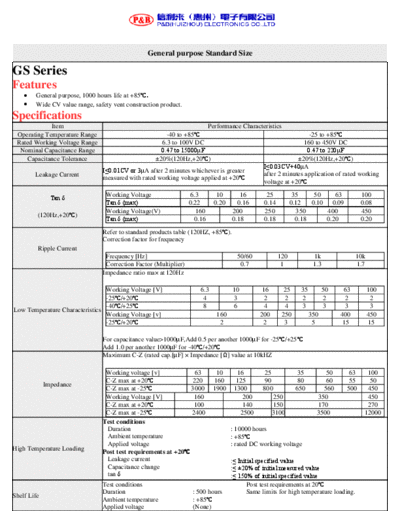

Image preview - the first page of the document



>> Download P&B [radial thru-hole] GS Series documenatation <<

Text preview - extract from the document

                                                 General purpose Standard Size

GS Series
Features
        General purpose, 1000 hours life at +85.
        Wide CV value range, safety vent construction product.
Specifications
             Item                                                     Performance Characteristics
 Operating Temperature Range                           -40 to +85                                          -25 to +85
 Rated Working Voltage Range                         6.3 to 100V DC                                      160 to 450V DC
  Nominal Capacitance Range                          0.47 to 15000F                                       0.47 to 220F
     Capacitance Tolerance
