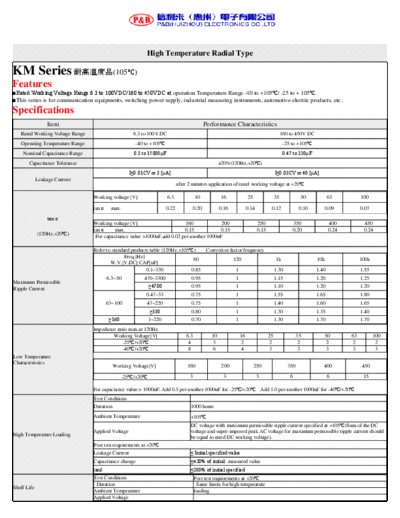

Image preview - the first page of the document



>> Download P&B [radial thru-hole] KM Series documenatation <<

Text preview - extract from the document

                                                          High Temperature Radial Type

KM Series (105)
Features
Rated Working Voltage Range 6.3 to 100VDC/160 to 450VDC at operation Temperature Range -40 to +105/ -25 to + 105.
This series is for communication equipments, switching power supply, industrial measuring instruments, automotive electric products, etc.
Specifications
                 Item                                                                       Performance Characteristics
   Rated Working Voltage Range                      6.3 to 100V DC                                                                          160 to 450V DC
   Operating Temperature Range                        -40 to +105                                                                            -25 to +105
    Nominal Capacitance Range                       0.1 to 15000F                                                                            0.47 to 220F
       Capacitance Tolerance
