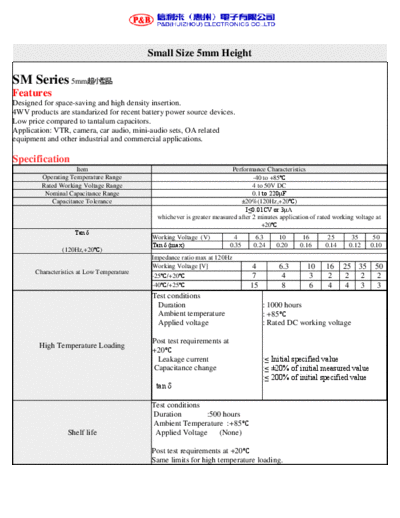

Image preview - the first page of the document



>> Download P&B [radial thru-hole] SM Series documenatation <<

Text preview - extract from the document

                                            Small Size 5mm Height

SM Series 5mm
Features
Designed for space-saving and high density insertion.
4WV products are standarized for recent battery power source devices.
Low price compared to tantalum capacitors.
Application: VTR, camera, car audio, mini-audio sets, OA related
equipment and other industrial and commercial applications.

Specification
                     Item                                                 Performance Characteristics
         Operating Temperature Range                                              -40 to +85
         Rated Working Voltage Range                                              4 to 50V DC
          Nominal Capacitance Range                                               0.1 to 220F
             Capacitance Tolerance
