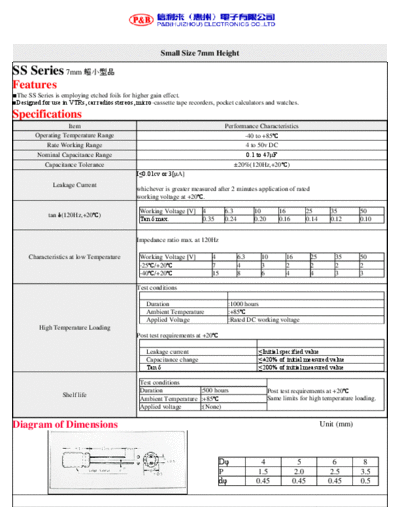

Image preview - the first page of the document



>> Download P&B [radial thru-hole] SS Series documenatation <<

Text preview - extract from the document

                                                       Small Size 7mm Height

SS Series 7mm
Features
The SS Series is employing etched foils for higher gain effect.
Designed for use in VTRs, car radios stereos, micro-cassette tape recorders, pocket calculators and watches.
Specifications
                    Item                                                        Performance Characteristics
        Operating Temperature Range                                                      -40 to +85
           Rate Working Range                                                            4 to 50v DC
         Nominal Capacitance Range                                                        0.1 to 47F
            Capacitance Tolerance
