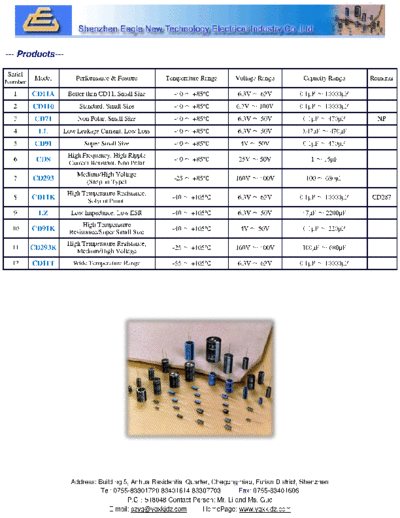

Image preview - the first page of the document
Rubysun Series Table


>> Download Rubysun Series Table documenatation <<

Text preview - extract from the document
--- Products---

 Serial
           Model       Performance & Feature        Temperature Range      Voltage Range          Capacity Range   Remarks
Number
  1       CD11A     Better than CD11, Small Size       -40  +85             6.3V  63V            0.1F  10000F         1
  2       CD110         Standard, Small Size           -40  +85             6.3V  100V           0.1F  10000F         1
  3        CD71        Non Polar, Small Size           -40  +85             6.3V  50V             0.1F  470F         NP
  4         LL     Low Leakage Current, Low Loss       -40  +85             6.3V  50V            0.47F  470F          1
  5        CD91           Super Small Size             -40  +85              4V  50V              0.1F  470F          1
                    High Frequency, High Ripple
  6        CDS                                         -40  +85              25V  50V                1  15F           1
                    Current Resistant, Non Polar
                       Medium/High Voltage
  7       CD293                                        -25  +85            160V  400V              100  680F          1
                         (Snap-in Type)
                    High Temperature Resistance,
  8       CD11K                                       -40  +105             6.3V  63V            0.1F  10000F      CD287
                           Solvent Proof.
  9         LZ       Low Impedance, Low ESR           -40  +105             6.3V  50V             47F  2200F          1
                         High Temperature
  10      CD91K                                       -40  +105              4V  50V              0.1F  220F          1
                    Resistance/Super Small Size
                    High Temperature Resistance,
  11      CD293K                                      -25  +105            160V  400V             100F  680F          1
                       Medium/High Voltage
  12      CD11T       Wide Temperature Range          -55  +105             6.3V  63V            0.1F  10000F         1




                     Address: Building 5, Anhua Residential Quarter, Chegongmiao, Futian District, Shenzhen
                               Tel: 0755-83301720 83401614 83307703         Fax: 0755-83401606
                                        P.C518048 Contact Person: Mr. Li and Ms. Guo
                                  E-mail: [email protected]       HomePage: www.ygxkjdz.com
