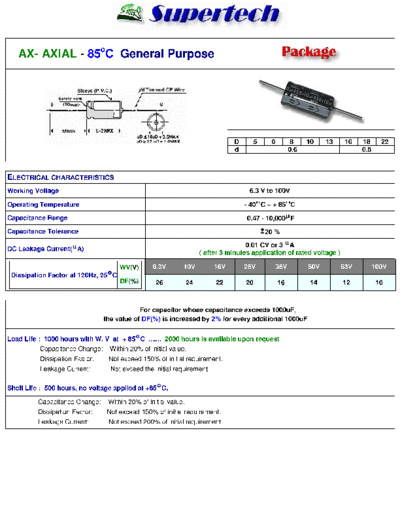

Image preview - the first page of the document
![S-Tech [axial] AX Series](/pics/5c2e0a59e8d6e.gif)
>> Download S-Tech [axial] AX Series documenatation <<
Text preview - extract from the document
AX- AXIAL - 85oC General Purpose
D 5 6 8 10 13 16 18 22
d 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 100V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.47 - 10,000 F
Capacitance Tolerance 20 %
0.01 CV or 3 A
DC Leakage Current( A)
( after 3 minutes application of rated voltage )
WV(V) 6.3V 10V 16V 25V 35V 50V 63V 100V
Dissipation Factor at 120Hz, 25 C
DF(%) 26 24 22 20 16 14 12 10
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 1000 hours with W. V at + 85 C ....... 2000 hours is available upon request
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at +85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
6.3v 10v 16v 25v 35v 50v 63v 100v
V
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 5x13 5 5x13 5 5x13 10
1 5x13 10 5x13 10 5x13 15
2.2 5x13 21 5x13 21 5x13 23
3.3 5x13 26 5x13 26 5x13 33
4.7 5x13 30 5x13 36 6.3x13 40
10 5x13 28 5x13 35 5x13 41 6.3x13 52 8x13 70
22 5x13 53 5x13 59 6.3x13 70 6.3x13 77 6.3x13 91 8x16 120
33 5x13 53 5x13 59 6.3x13 72 6.3x13 86 6.3x16 99 8x16 118 8x16 162
47 5x13 63 5x13 72 6.3x13 95 8x13 112 8x16 127 8x16 148 8x20 190
100 5x13 95 6.3x13 116 6.3x13 138 8x13 160 8x13 175 8x16 205 8x20 245 10x26 318
220 6.3x13 157 8x13 194 8x13 227 8x16 260 8x20 323 10x20 368 10x26 440 13x26 525
330 8x13 214 8x16 245 8x16 290 8x20 340 10x20 430 10x26 485 13x26 570 13x31 710
470 8x13 315 8x16 340 8x20 415 10x26 430 10x26 550 13x26 610 13x31 730 16x38 860
1000 10x20 500 10x20 585 10x26 675 13x22 745 13x26 890 16x31 1040 16x38 1210 22x41 1650
2200 13x22 780 13x22 900 13x26 1100 16x31 1230 16x38 1360 18x41 1580 22x41 2100
3300 13x26 1040 13x26 1100 16x31 1350 16x31 1480 18x41 1740 22x41 2050 22x51 2370
4700 16x31 1250 16x31 1380 16x41 1540 18x41 1850 22x41 2240 22x51 2510
6800 16x31 1760 16x41 1880 18x41 2060 22x41 2450 22x51 2760
10000 16x41 2270 18x41 2360 22x41 2850 22x51 3240
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
