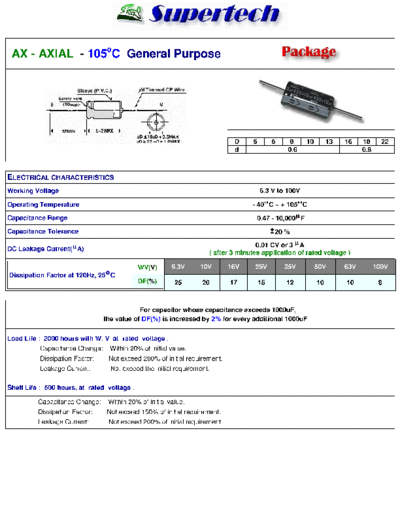

Image preview - the first page of the document
![S-Tech [axial] AX-H Series](/pics/5c2e0a6699fb4.gif)
>> Download S-Tech [axial] AX-H Series documenatation <<
Text preview - extract from the document
AX - AXIAL - 105oC General Purpose
D 5 6 8 10 13 16 18 22
d 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 100V
Operating Temperature - 40 C ~ + 105 C
Capacitance Range 0.47 - 10,000 F
Capacitance Tolerance 20 %
0.01 CV or 3 A
DC Leakage Current( A)
( after 3 minutes application of rated voltage )
WV(V) 6.3V 10V 16V 25V 35V 50V 63V 100V
Dissipation Factor at 120Hz, 25 C
DF(%) 25 20 17 15 12 10 10 8
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 2000 hours with W. V at rated voltage .
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, at rated voltage .
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 105 C DxL(mm)
6.3v 10v 16v 25v 35v 50v 63v 100v
V
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 6x13 9
1 6x13 14
2.2 6x13 19
3.3 6x13 25 6x13 31
4.7 6x13 25 6x13 28 6x13 31
10 6x13 32 6x13 31 6x13 35 5x13 36 6x13 40 8x16 60
22 6x13 41 6x13 49 6x13 54 6x16 67 6x16 84 8x16 98
33 6x13 50 6x13 59 6x16 75 6x16 91 6x16 98 8x20 130
47 6x16 55 6x16 67 6x16 80 8x16 106 8x16 116 8x16 130 8x20 160
100 6x13 91 6x16 101 8x16 130 8x16 138 8x20 170 8x16 170 8x20 210 13x21 280
220 8x13 178 8x20 212 8x16 186 10x20 272 10x20 330 10x25 400 13x26 474
330 8x16 196 8x20 239 10x21 301 10x24 339 10x24 360 10x25 440 13x25 550 16x25 650
470 10x21 297 10x21 332 10x24 380 10x24 410 10x25 480 13x25 580 13x30 700 16x40 880
1000 10x24 457 10x30 561 10x30 670 13x25 720 13x30 840 16x25 940 16x30 1130 22x40 1380
2200 13x24 762 13x25 850 13x32 1010 16x25 1110 16x30 1270 22x40 1490 22x40 1720 25x60 2170
3300 13x25 920 13x30 1080 16x25 1210 16x30 1656 16x40 1540 22x40 1780 22x40 2020 25x80 2800
4700 13x30 1150 16x25 1270 16x30 1490 18x40 1690 22x40 1880 22x50 2100 25x50 2404
6800 18x40 1710 18x40 1837 16x40 1740 22x40 1950 22x50 2140 25x50 2480
10000 22x40 2172 22x40 2306 22x40 2050 22x50 2230 25x50 2513
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
