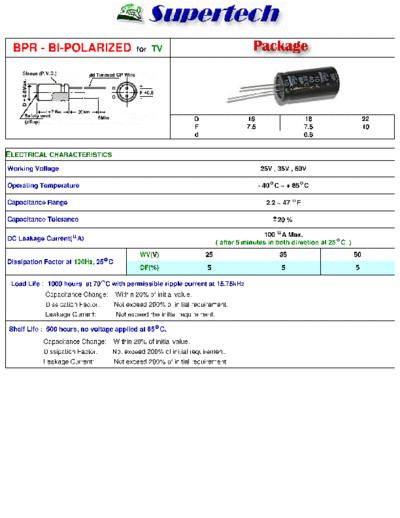

Image preview - the first page of the document
![S-Tech [bi-polar radial] BPR Series](/pics/5c2e0a716f415.gif)
>> Download S-Tech [bi-polar radial] BPR Series documenatation <<
Text preview - extract from the document
BPR - BI-POLARIZED for TV
D 16 18 22
F 7.5 7.5 10
d 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 25V , 35V , 50V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 2.2 ~ 47 F
Capacitance Tolerance 20 %
100 A Max.
DC Leakage Current( A)
( after 5 minutes in both direction at 25 C )
WV(V) 25 35 50
Dissipation Factor at 120Hz, 25 C
DF(%) 5 5 5
Load Life : 1000 hours at 70 C with permissible ripple current at 15.75kHz
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
V 25 35 50
uF
DxL mA DxL mA DxL mA
2.2 16x26 6 16x26 6 16x26 6
3.3 16x26 7 16x26 7 16x26 7
4.7 16x26 7 16x26 7 16x26 7
5.6 16x26 7 16x26 7 16x26 7
6.8 16x26 8 16x26 8 16x26 8
8.2 16x32 8 16x32 8 16x32 8
10 16x32 12 16x32 12 16x32 12
13 18x40 12 18x40 12 18x40 12
15 18x40 12 18x40 12 18x40 12
18 18x40 13 18x40 13 18x40 13
20 18x40 13 18x40 13 18x40 13
22 18x40 13 18x40 13 18x40 13
25 18x40 13 18x40 13 18x40 13
47 22x40 13 22x40 13 22x40 13
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
