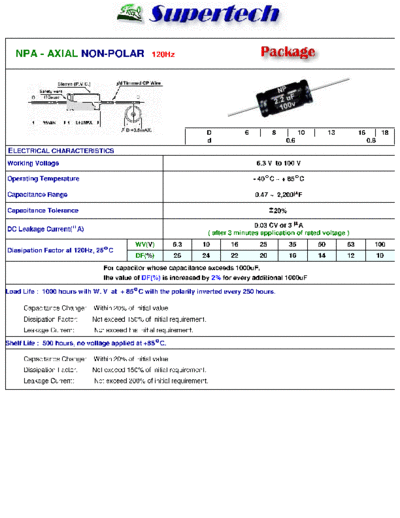

Image preview - the first page of the document
![S-Tech [non-polar axial] NPA Series](/pics/5c2e0a7bac0c0.gif)
>> Download S-Tech [non-polar axial] NPA Series documenatation <<
Text preview - extract from the document
NPA - AXIAL NON-POLAR 120Hz
D 6 8 10 13 16 18
d 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 100 V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.47 ~ 2,200 F
Capacitance Tolerance 20%
0.03 CV or 3 A
DC Leakage Current( A)
( after 3 minutes application of rated voltage )
WV(V) 6.3 10 16 25 35 50 63 100
Dissipation Factor at 120Hz, 25 C
DF(%) 26 24 22 20 16 14 12 10
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 1000 hours with W. V at + 85 C with the polarity inverted every 250 hours.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at +85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
V 6.3 10 16 25 35 50 63 100
uF DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 6x16 15 6x16 15 6x16 18
1 6x16 22 6x16 22 6x16 26
2.2 6x16 32 6x16 32 6x16 38
3.3 6x16 38 6x16 38 6x16 46
4.7 6x16 45 6x16 40 6x16 55
10 6x16 55 8x16 75 8x16 50 10x21 100
22 6x16 75 8x16 90 8x16 100 10x21 130 10x21 85 10x26 180
33 6x16 83 8x16 100 8x16 115 8x16 125 10x21 140 10x21 120 13x27 230
47 6x16 90 6x16 110 8x16 120 8x16 140 8x20 160 10x21 180 10x26 150 13x27 290
100 8x16 140 8x20 175 8x20 200 10x21 230 10x26 280 13x27 360 13x27 210 16x38 520
220 8x20 200 10x21 290 10x26 360 13x27 430 13x27 510 13x32 590 16x38 410
330 10x21 320 10x26 405 13x27 480 13x27 520 13x32 600 16x32 720
470 10x26 385 13x27 510 13x27 540 13x32 660 16x32 770
1000 13x27 690 13x32 760 16x32 980
2200 16x32 1240 16x38 1400
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
