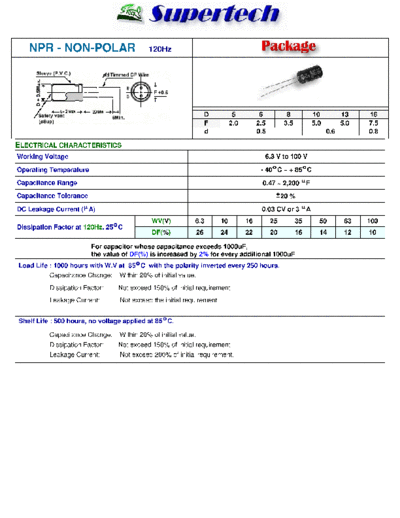

Image preview - the first page of the document
![S-Tech [non-polar radial] NPR Series](/pics/5c2e0a821bc28.gif)
>> Download S-Tech [non-polar radial] NPR Series documenatation <<
Text preview - extract from the document
NPR - NON-POLAR 120Hz
D 5 6 8 10 13 16
F 2.0 2.5 3.5 5.0 5.0 7.5
d 0.5 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 100 V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.47 ~ 2,200 F
Capacitance Tolerance 20 %
DC Leakage Current ( A) 0.03 CV or 3 A
WV(V) 6.3 10 16 25 35 50 63 100
Dissipation Factor at 120Hz, 25 C
DF(%) 26 24 22 20 16 14 12 10
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 1000 hours with W.V at 85 C with the polarity inverted every 250 hours.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
V 6.3 10 16 25 35 50 63 100
uF DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 5x11 11 5x11 11 5x11 14
1 5x11 17 5x11 17 5x11 21
2.2 5x11 25 5x11 29 6x11 34
3.3 5x11 31 6x11 39 8x12 49
4.7 5x11 34 5x11 41 8x12 47 8x12 58
6.8 5x11 42 6x11 53
10 5x11 42 5x11 50 5x11 54 6x11 70 8x14 88 8x14 100
22 5x11 57 5x11 69 6x12 86 6x12 94 8x14 115 10x12 150 13x21 180
33 5x11 63 5x11 77 6x12 98 8x12 105 8x14 125 10x16 150 13x21 205 13x21 220
47 6x11 84 6x11 93 6x12 115 8x14 140 10x16 165 10x20 190 13x21 245 13x25 285
100 8x12 140 8x12 193 10x16 205 10x20 240 13x21 285 13x21 310 16x26 435 16x32 510
220 8x14 235 10x16 255 10x20 330 13x21 390 16x26 520 16x26 570
330 8x14 310 10x20 380 13x21 445 16x26 580 16x26 630 16x36 790
470 10x16 400 13x21 470 13x25 570 16x26 690 16x32 820
1000 13x25 690 16x26 885 16x32 1020
2200 16x32 1250 16x36 1450
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
