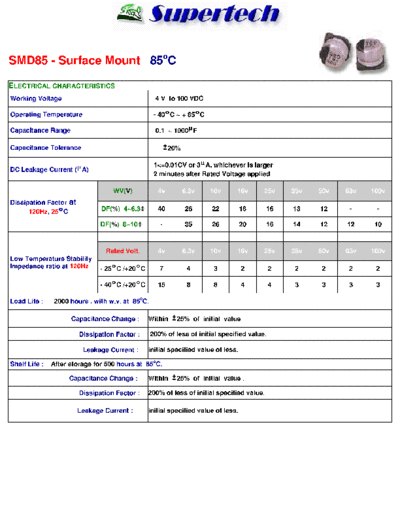

Image preview - the first page of the document
![S-Tech [smd] SMD85 Series](/pics/5c2e0a8aa5f1a.gif)
>> Download S-Tech [smd] SMD85 Series documenatation <<
Text preview - extract from the document
SMD85 - Surface Mount 85oC
ELECTRICAL CHARACTERISTICS
Working Voltage 4 V to 100 VDC
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.1 ~ 1000 F
Capacitance Tolerance 20%
1<=0.01CV or 3 A, whichever is larger
DC Leakage Current ( A)
2 minutes after Rated Voltage applied
WV(V) 4v 6.3v 10v 16v 25v 35v 50v 63v 100v
Dissipation Factor at
120Hz, 25 C DF(%) 4~6.3 40 26 22 18 16 13 12 - -
DF(%) 8~10 - 35 26 20 16 14 12 12 10
Rated Volt. 4v 6.3v 10v 16v 25v 35v 50v 63v 100v
Low Temperature Stability
Impedance ratio at 120Hz - 25 C /+20 C 7 4 3 2 2 2 2 2 2
- 40 C /+20 C 15 8 8 4 4 3 3 3 3
o
Load Life : 2000 hours , with w.v. at 85 C.
Capacitance Change : Within 25% of initial value
Dissipation Factor : 200% of less of initial specified value.
Leakage Current : initial specified value of less.
o
Shelf Life : After storage for 500 hours at 85 C.
Capacitance Change : Within 25% of initial value .
Dissipation Factor : 200% of less of initial specified value.
Leakage Current : initial specified value of less.
Case size & Max. Ripple Current DxL (mm)
wv(sv) 4 6.3 10 16 25 35 50 63 100
uF Size mA Size mA Size mA Size mA Size mA Size mA Size mA Size mA Size mA
0.1 A 1.0
0.22 A 2.0
0.33 A 2.8
o
0.47 Ripple Current : mA R.M.S. at 120Hz 85 C A 4.0
1.0 A 8.4
2.2 A 13
3.3 A 17
4.7 A 16 A 18 A 20 E 40
10 A 20 A 23 A 27 A,B 22/29 B,C 30/33 E 77
22 A 28 A 33 A,B 30/39 B,C 38/58 B,C 39/60 C,D 45/80 E 96 E 100
33 A 28 A 37 A 41 B 44 B,C 46/65 C 58 E 110 E 117 F 130
47 A 33 A,B 40/46 B 47 B,C 52/58 C 60 C,D 70/155 C8,E 105/140 E 140 F 155
100 B 56 B,C 47/71 B,C 54/76 C 86 D 160 C8,D 132/175 E,F 181/195 F 232
220 C 96 C,D 143/160 C8,D 173/250 C8,D 162/280 E 250 E,F 246/265
330 C8,D 145/152 C8,D 188/190 E 330 E 330 F 305
470 C8,D 200/220 E 265 E 290 E,F 275/330
1000 E 344 E,F 372/400 F 415
Diagram of dimensions
SIZE D L A C B W P
A 4 5.5 4.3 4.3 5.1 0.5~0.8 1.0
B 5 5.5 5.3 5.3 5.9 0.5~0.8 1.4
C 6.3 5.5 6.6 6.6 7.2 0.5~0.8 2.0
C8 6.3 7.7 6.6 6.6 7.2 0.5~0.8 2.0
D 8 6.3 8.3 8.3 9.0 0.5~0.8 2.2
E 8 10.5 8.3 8.3 9.0 0.8~1.1 3.1
F 10 10.5 10.3 10.3 11.0 0.8~1.1 4.5
