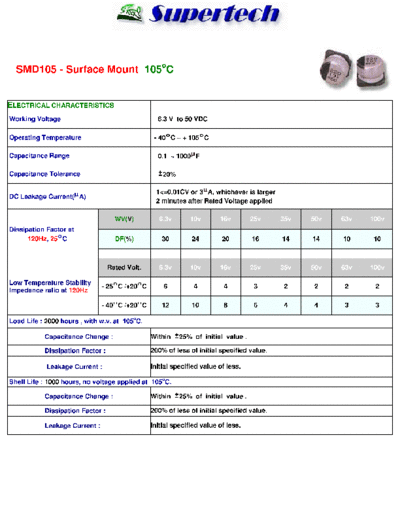

Image preview - the first page of the document
![S-Tech [smd] SMD105 Series](/pics/5c2e0a9002db8.gif)
>> Download S-Tech [smd] SMD105 Series documenatation <<
Text preview - extract from the document
SMD105 - Surface Mount 105oC
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 50 VDC
Operating Temperature - 40 C ~ + 105 C
Capacitance Range 0.1 ~ 1000 F
Capacitance Tolerance 20%
1<=0.01CV or 3 A, whichever is larger
DC Leakage Current( A)
2 minutes after Rated Voltage applied
WV(V) 6.3v 10v 16v 25v 35v 50v 63v 100v
Dissipation Factor at
120Hz, 25 C DF(%) 30 24 20 16 14 14 10 10
Rated Volt. 6.3v 10v 16v 25v 35v 50v 63v 100v
Low Temperature Stability
- 25 C /+20 C 6 4 4 3 2 2 2 2
Impedance ratio at 120Hz
- 40 C /+20 C 12 10 8 6 4 4 3 3
o
Load Life : 2000 hours , with w.v. at 105 C.
Capacitance Change : Within 25% of initial value .
Dissipation Factor : 200% of less of initial specified value.
Leakage Current : initial specified value of less.
o
Shelf Life : 1000 hours, no voltage applied at 105 C.
Capacitance Change : Within 25% of initial value .
Dissipation Factor : 200% of less of initial specified value.
Leakage Current : initial specified value of less.
Case size & Max. Ripple Current DxL (mm)
wv(sv) 6.3 v 10 v 16 v 25 v 35 v 50 v
uF DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.1 A 1.0
0.22 A 2.0
0.33 A 3.0
o
0.47 Ripple Current : mA R.M.S. at 120Hz 105 C A 4.0
1.0 A 8.4
2.2 A 11
3.3 A 13
4.7 A 12 A 14 B 18
10 A 20 B 22 B 24 C 28
22 A 23 A 25 B 31 C 38 C 46 D 55
33 A 28 A 34 B 40 C 48 D 50 E 135
47 B 37 C 40 C 56 D 60 D 65 E 155
100 C 57 D 60 D 62 E 180 E 180 F 315
220 D 65 D 70 E 185 F 190 F 360
330 E 70 E 195 F 195
470 E 210 F 440
1000 F 480
Diagram of dimensions
SIZE D L A C B W P
A 4 5.5 4.3 4.3 5.1 0.5~0.8 1.0
B 5 5.5 5.3 5.3 5.9 0.5~0.8 1.4
C 6.3 5.5 6.6 6.6 7.2 0.5~0.8 2.0
D 8 6.3 8.3 8.3 9.0 0.5~0.8 2.2
E 8 10.5 8.3 8.3 9.0 0.8~1.1 3.1
F 10 10.5 10.3 10.3 11.0 0.8~1.1 4.5
