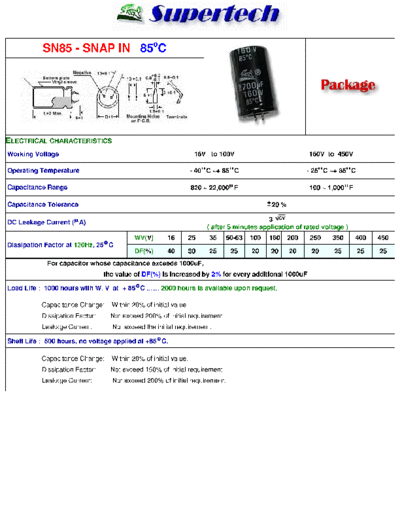

Image preview - the first page of the document
![S-Tech [snap-in] SN85 Series](/pics/5c2e0a9b1df56.gif)
>> Download S-Tech [snap-in] SN85 Series documenatation <<
Text preview - extract from the document
SN85 - SNAP IN 85oC
ELECTRICAL CHARACTERISTICS
Working Voltage 16V to 100V 160V to 450V
Operating Temperature - 40 C ~+ 85 C - 25 C ~+ 85 C
Capacitance Range 820 ~ 22,000 F 100 ~ 1,000 F
Capacitance Tolerance 20 %
DC Leakage Current ( A) 3
( after 5 minutes application of rated voltage )
WV(V) 16 25 35 50-63 100 160 200 250 350 400 450
Dissipation Factor at 120Hz, 25 C
DF(%) 40 30 25 25 20 20 20 20 25 25 25
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 1000 hours with W. V at + 85 C ....... 2000 hours is available upon request.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at +85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: A R.M.S. at 120Hz 85 C 16V ~ 100V DxL(mm)
16 25 35 50 63 100
V
uF
DxL A DxL A DxL A DxL A DxL A DxL A
22x30 1.55
820
25x25 1.54
22x25 1.42 22x30 1.71
1000
25x25 1.46 25x30 2.20
22x25 1.92 22x30 2.08 25x45 2.77
2200
25x25 1.98 25x30 2.10 30x35 3.07
22x25 2.03 22x25 2.04 22x35 2.51 22x45 2.81 30x45 3.27
3300
25x25 2.09 25x25 2.10 25x30 2.38 25x35 2.76 35x35 3.39
22x25 1.8 22x30 2.49 22x30 2.41 22x40 2.89 25x45 3.11
4700 35x50 4.01
25x25 2.21 25x25 2.31 25x30 2.44 25x35 2.99 30x35 3.20
22x25 2.40 22x35 2.87 22x40 2.98 25x45 3.37 30x45 3.54
6800
25x25 2.47 25x30 2.72 30x30 2.86 30x35 3.46 35x35 3.68
22x35 3.00 22x45 3.45 25x45 3.41 30x50 3.72
10000 35x50 4.48
25x30 2.84 30x30 3.14 30x35 3.51 35x35 3.86
22x45 3.62 25x45 3.78 30x45 4.08
15000 35x50 5.30
25x35 3.55 30x35 3.89 35x40 4.47
25x45 4.25 30x50 4.94 35x45 5.68
22000
30x35 4.37 35x40 5.17 30x60 6.88
160 200 250 350 400 450
V
uF
DxL A DxL A DxL A DxL A DxL A DxL A
22x30 0.66 22x30 0.68 22x40 0.73
100
25x25 0.63 25x25 0.65 25x30 0.65
22x35 0.76 22x35 0.82 25x40 0.76
120
25x30 0.73 25x30 0.75 30x30 0.73
22x35 0.86 22x40 0.95 25x50 0.89
150
25x30 0.82 25x30 0.85 30x40 0.87
22x25 0.97 22x30 1.44 22x45 1.17 22x50 1.27 30x30 1.14
220
25x30 1.00 25x25 1.09 30x30 1.06 30x35 1.17 30x50 1.18
22x25 1.11 22x30 1.29 22x40 1.58 25x50 1.53 30x45 1.59 35x35 1.50
330
25x25 1.14 25x25 1.23 25x30 1.42 35x35 1.60 35x35 1.65 35x50 1.55
22x35 1.53 22x40 1.74 22x50 2.09 30x50 1.92 35x60 1.99
470 35x45 2.19
25x30 1.45 25x30 1.55 30x35 1.93 35x40 2.01 35x50 1.70
22x40 1.95 25x40 2.14 30x40 2.29
680
30x30 1.87 30x35 2.14 35x35 2.22
22x50 2.36 25x50 2.59 30x45 2.83
820
30x30 2.05 30x35 2.55 35x40 3.11
25x45 2.55 30x45 2.87
1000 35x45 3.60
30x35 2.62 35x35 2.99
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
