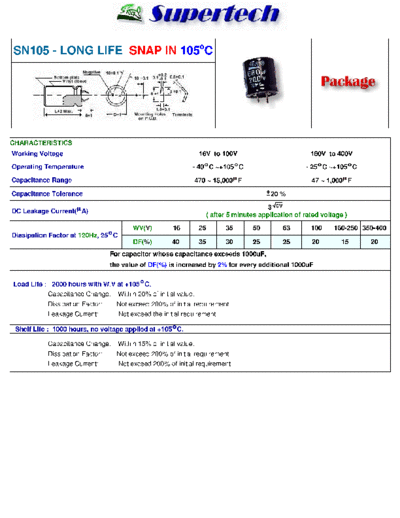

Image preview - the first page of the document
![S-Tech [snap-in] SN105 Series](/pics/5c2e0aa0e6a48.gif)
>> Download S-Tech [snap-in] SN105 Series documenatation <<
Text preview - extract from the document
SN105 - LONG LIFE SNAP IN 105oC
CHARACTERISTICS
Working Voltage 16V to 100V 160V to 400V
Operating Temperature - 40 C ~+105 C - 25 C ~+105 C
Capacitance Range 470 ~ 15,000 F 47 ~ 1,000 F
Capacitance Tolerance 20 %
3
DC Leakage Current( A)
( after 5 minutes application of rated voltage )
WV(V) 16 25 35 50 63 100 160-250 350-400
Dissipation Factor at 120Hz, 25 C
DF(%) 40 35 30 25 25 20 15 20
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 2000 hours with W.V at +105 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 1000 hours, no voltage applied at +105 C.
Capacitance Change: Within 15% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Case Size DxL(mm)
V
uF 16 25 35 50 63 100 160 200 250 350 400
47 22x25
100 22x25 22x35 22x40
150 22x30 22x35 22x45 22x50
220 22x30 22x35 22x45 25x40 25x50
330 22x35 22x40 25x45 30x45 30x50
470 22x30 22x40 25x40 25x50
560 22x35 22x45 25x45 30x45
680 22x25 22x40 25x40 30x40 30x50
820 22x25 22x45 25x50 30x45
1000 22x25 22x25 22x30 25x45 30x45 30x50
1500 22x25 22x30 22x35 25x50
2200 22x25 22x35 22x40 25x40 30x40
3300 22x25 22x35 22x45 25x45 25x50
4700 22x30 22x40 25x45 25x50
6800 22x40 25x45 25x50
8200 22x45 25x45
10000 25x45 25x50
12000 25x50
15000 25x50
E.S.R. at 120Hz, 25 C unit: ohm
V
uF 16 25 35 50 63 100 160 200 250 350 400
47 0.30
100 0.51 0.48 0.53
150 0.60 0.72 0.65 0.72
220 0.66 0.78 0.97 0.77 0.89
330 0.87 1.01 1.21 1.09 1.14
470 0.76 1.10 1.23 1.52
560 0.89 1.26 1.41 1.66
680 0.75 1.04 1.35 1.56 1.92
820 0.82 1.20 1.64 1.80
1000 0.86 0.91 0.98 1.35 1.82 2.08
1500 1.01 1.14 1.22 1.63
2200 1.17 1.34 1.49 1.52 1.78
3300 1.23 1.54 1.70 1.81 1.89
4700 1.47 1.79 1.88 1.24
6800 1.84 2.11 2.14
8200 2.02 2.18
10000 2.14 2.35
12000 2.32
15000 2.40
Permissible Ripple Current at 120Hz, 105 C unit : mA, rms
V
uF 16 25 35 50 63 100 160 200 250 350 400
47 300
100 510 480 530
150 600 720 650 720
220 660 780 970 770 890
330 870 1010 1210 1090 1140
470 760 1100 1230 1520
560 890 1260 1410 1660
680 750 1040 1350 1560 1920
820 820 1200 1640 1800
1000 860 910 980 1350 1820 2080
1500 1010 1140 1220 1630
2200 1170 1340 1490 1520 1780
3300 1230 1540 1700 1810 1890
4700 1470 1790 1880 2040
6800 1840 2110 2140
8200 2020 2180
10000 2140 2350
12000 2320
15000 2400
