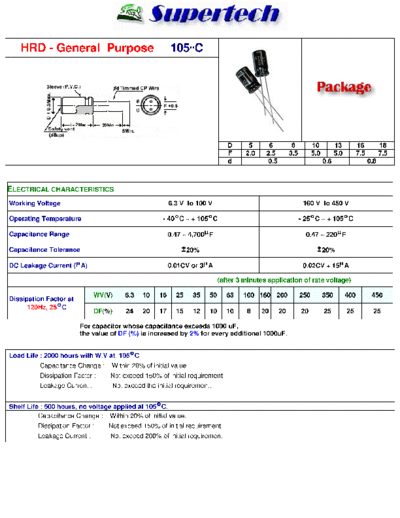

Image preview - the first page of the document
![S-Tech [radial thru-hole] HRD Series](/pics/5c2e0aa5c85e2.gif)
>> Download S-Tech [radial thru-hole] HRD Series documenatation <<
Text preview - extract from the document
HRD - General Purpose 105 C
D 5 6 8 10 13 16 18
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
d 0.5 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 100 V 160 V to 450 V
Operating Temperature - 40 C ~ + 105 C - 25 C ~ + 105 C
Capacitance Range 0.47 ~ 4,700 F 0.47 ~ 220 F
Capacitance Tolerance 20% 20%
DC Leakage Current ( A) 0.01CV or 3 A 0.02CV + 15 A
(after 3 minutes application of rate voltage)
WV(V) 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
Dissipation Factor at
120Hz, 25 C
DF(%) 24 20 17 15 12 10 10 8 20 20 20 25 25 25
For capacitor whose capacitance exceeds 1000 uF,
the value of DF (%) is increased by 2% for every additional 1000uF.
Load Life : 2000 hours with W.V at 105 C
Capacitance Change : Within 20% of initial value.
Dissipation Factor : Not exceed 150% of initial requirement.
Leakage Current : Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 105 C.
Capacitance Change : Within 20% of initial value.
Dissipation Factor : Not exceed 150% of initial requirement.
Leakage Current : Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 105 C 6.3V ~ 100V DxL(mm)
V 6.3 10 16 25 35 50 63 100
uF
DxL mA DxL mA DxL mA DxL mA DxL DxL
mA mA DxL mA DxL mA
0.47 5x11 7 5x11 7 5x11 7
1 5x11 13 5x11 14 5x11 15
2.2 5x11 20 5x11 20 5x11 21
3.3 5x11 25 5x11 26 5x11 29
4.7 5x11 32 5x11 32 6x11 32
6.8 5x11 47 5x11 48 6x11 50
10 5x11 35 5x11 38 5x11 42 5x11 70 6x11 76 8x12 93
22 5x11 46 5x11 52 5x11 64 5x11 92 8x11 100 8x14 130
33 5x11 55 5x11 62 5x11 69 5x11 77 6x11 115 8x14 130 10x16 165
47 5x11 72 5x11 80 5x11 84 6x11 94 6x11 190 10x16 215 10x20 258
100 5x11 94 5x11 105 6x11 120 6x11 140 8x12 155 8x14 305 10x20 340 13x26 419
220 6x11 150 6x11 175 8x12 195 8x12 240 10x13 275 10x16 415 13x21 510 16x26 540
330 6x11 195 8x12 215 8x12 265 10x13 315 10x16 350 10x20 545 13x26 640 16x31 715
470 8x12 240 8x12 260 8x14 320 10x16 385 10x20 480 13x21 950 16x32 930
1000 8x14 400 10x16 470 10x16 560 10x21 680 13x21 830 16x26 1480
2200 10x20 715 10x20 765 13x21 925 13x26 1100 16x26 1270 18x36 1780
3300 13x21 840 13x21 1010 13x26 1170 16x32 1420 16x36 1610 18x36 1920
4700 13x26 1090 13x26 1260 16x32 1490 18x36 1710 18x41 1920 22x41
Ripple Current: mA R.M.S. at 120Hz 105 C 160V ~ 450V DxL(mm)
V 160 200 250 350 400 450
uF DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 6x11 12 6x11 12 6x11 12 8x12 10
1 6x11 17 6x11 17 6x11 17 10x13 18 10x13 18 10x13 18
2.2 6x11 25 6x11 25 8x12 30 10x16 31 10x16 31 10x16 31
3.3 8x12 35 8x12 36 10x13 43 10x16 40 10x20 41 13x21 43
4.7 8x14 43 10x13 50 10x16 53 10x20 50 13x21 55 13x21 55
13x21
10 10x16 72 10x16 80 10x20 85 13x21 80 10x17 80 13x26 80
10x20
22 10x20 125 13x21 130 13x26 150 16x26 130 16x26 145 16x32 150
33 13x21 170 13x21 180 13x26 185 16x32 170 16x32 170 18x37 190
13x21
47 13x26 210 16x27 220 16x26 240 18x37 235 18x36 240
100 16x32 320 16x32 340 18x36 345
220 18x36 515 18x41 525
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
