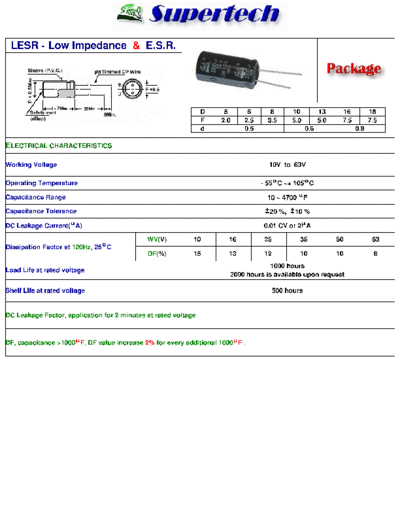

Image preview - the first page of the document
![S-Tech [radial thru-hole] LESR Series](/pics/5c2e0aab10c65.gif)
>> Download S-Tech [radial thru-hole] LESR Series documenatation <<
Text preview - extract from the document
LESR - Low Impedance & E.S.R.
D 5 6 8 10 13 16 18
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
d 0.5 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 10V to 63V
Operating Temperature - 55 C ~+ 105 C
Capacitance Range 10 ~ 4700 F
Capacitance Tolerance 20 %, 10 %
DC Leakage Current( A) 0.01 CV or 2 A
WV(V) 10 16 25 35 50 63
Dissipation Factor at 120Hz, 25 C
DF(%) 15 13 12 10 10 8
1000 hours
Load Life at rated voltage
2000 hours is available upon request
Shelf Life at rated voltage 500 hours
DC Leakage Factor, application for 2 minutes at rated voltage
DF, capacitance >1000 F, DF value increase 2% for every additional 1000 F .
Capacitance / Size
V 10 16 25 35 50 63
uF DxL DxL DxL DxL DxL DxL
10 5X11 5X11 6.3X11
22 5X11 6.3X11 6.3X11 8X12
33 5X11 6.3X11 6.3X11 8X12 8X12
47 5X11 6.3X11 6.3X11 6.3X11.5 8X12 10X13
100 6.3X11 6.3X11 8X12 8X12 8X20 10X20
220 8X12 8X12 8X15 8X20 10X25 13X21
330 8X12 8X15 8X20 10X20 13X21 13X25
470 10X15 10X16 10X21 10X21.5 13X25 16X25
1000 13X15 13X20 13X25 16X20 16X31.5 16X40
2200 13X25 13X31.5 13X40
3300 13X35 13X40
4700 16X31.5
Ripple Current (mA) R.M.S. Max. at 100KHz, 105 C
V
uF 10 16 25 35 50 63
10 70 79 81
22 100 110 118 250
33 105 120 135 250 250
47 105 150 160 250 250 350
100 175 250 250 350 475 630
220 250 350 470 635 780 785
330 345 475 635 785 785 940
470 470 635 780 945 1420 1430
1000 780 780 1430 1430 1880 2110
2200 1420 1430 2110
3300 1870 2110
4700 2100
Impedance (-ohm) Max. at 100KHz, 25 C
V
uF 10 16 25 35 50 63
10 2.00 2.00 1.50
22 2.00 1.50 1.50 0.80
33 2.00 1.50 1.50 0.80 0.80
47 2.00 1.50 1.50 0.80 0.80 0.80
100 1.50 0.80 0.80 0.40 0.27 0.20
220 0.80 0.40 0.27 0.20 0.16 0.16
330 0.40 0.27 0.20 0.16 0.16 0.13
470 0.27 0.20 0.16 0.13 0.08 0.08
1000 0.16 0.13 0.08 0.08 0.06 0.054
2200 0.08 0.08 0.054
3300 0.06 0.054
4700 0.054
