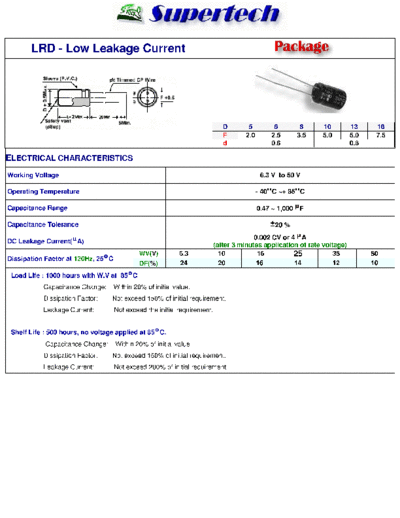

Image preview - the first page of the document
![S-Tech [radial thru-hole] LRD Series](/pics/5c2e0ab036dc4.gif)
>> Download S-Tech [radial thru-hole] LRD Series documenatation <<
Text preview - extract from the document
LRD - Low Leakage Current
D 5 6 8 10 13 16
F 2.0 2.5 3.5 5.0 5.0 7.5
d 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 50 V
Operating Temperature - 40 C ~+ 85 C
Capacitance Range 0.47 ~ 1,000 F
Capacitance Tolerance 20 %
0.002 CV or 4 A
DC Leakage Current( A)
(after 3 minutes application of rate voltage)
WV(V) 6.3 10 16 25 35 50
Dissipation Factor at 120Hz, 25 C
DF(%) 24 20 16 14 12 10
Load Life : 1000 hours with W.V at 85 C
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
V 6.3 10 16 25 35 50
uF DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 5x11 7
1 5x11 12
2.2 5x11 21
3.3 5x11 28
4.7 5x11 30 5x11 30 6x11 40
10 5x11 50 5x11 50 5x11 60 6x11 77
22 5x11 65 5x11 78 5x11 88 6x11 102 8x11 115
33 5x11 85 5x11 99 6x11 115 6x11 126 8x11 158
47 5x11 99 5x11 108 6x11 119 6x11 137 8x11 169 8x14 195
100 5x11 145 6x11 168 6x11 185 8x11 225 8x11 255 10x17 336
220 6x11 230 8x11 281 8x11 309 10x15 392 10x17 446 13x21 570
330 8x11 317 8x14 355 10x13 444 10x20 523 13x21 624 13x26 730
470 8x14 391 10x13 481 10x15 551 10x20 624 13x26 779 16x27 932
1000 10x15 673 10x20 764 13x21 919 13x26 1038 16x27 1316 16x36 1449
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
