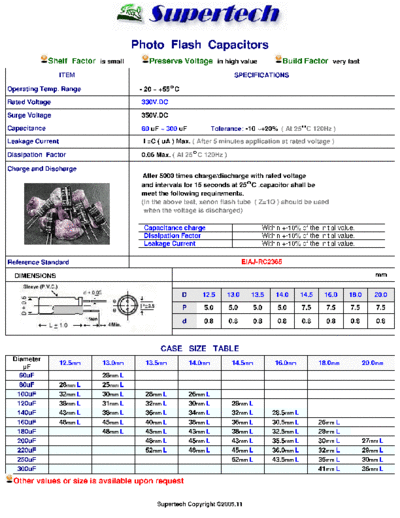

Image preview - the first page of the document



>> Download S-Tech [radial thru-hole] NBC Series documenatation <<

Text preview - extract from the document

                                      Photo Flash Capacitors
              Shelf Factor is small       Preserve Voltage in high value                    Build Factor very fast
                  ITEM                                                    SPECIFICATIONS

Operating Temp. Range                  - 20 ~ +55 C
Rated Voltage                          330V.DC

Surge Voltage                          350V.DC

Capacitance                            60 uF ~ 300 uF              Tolerance: -10 ~+20% ( At 25 C 120Hz )
Leakage Current                         I =C ( uA ) Max. ( After 5 minutes application at rated voltage )

Dissipation Factor                     0.06 Max. ( At 25 C 120Hz )

Charge and Discharge
                                       After 5000 times charge/discharge with rated voltage
                                       and intervals for 15 seconds at 25 C .capacitor shall be
                                       meet the following requirements.
                                       (In the above test, xenon flash tube ( Z=1Q ) should be used
                                        when the voltage is discharged)

                                        Capacitance charge                         Within +-10% of the initial value.
                                        Dissipation Factor                         Within +-10% of the initial value.
                                        Leakage Current                            Within +-10% of the initial value.

Reference Standard                                                            EIAJ-RC2365

  DIMENSIONS                                                                                                                mm


                                                      D      12.5      13.0     13.5    14.0      14.5    16.0    18.0      20.0
                                                      P       5.0       5.0      5.0    5.0       7.5      7.5     7.5       7.5

                                                      d       0.8       0.8      0.8    0.8       0.8      0.8     0.8       0.8



                                             CASE SIZE TABLE
 Diameter
                  12.5mm     13.0mm     13.5mm            14.0mm         14.5mm        16.0mm            18.0mm          20.0mm
    F
   60uF                      28mm L
   80uF           28mm L     25mm L
  100uF           32mm L     30mm L     28mm L            26mm L
  120uF           38mm L     31mm L     32mm L            30mm L         28mm L
  140uF           43mm L     38mm L     36mm L            34mm L         32mm L        28.5mm L
  160uF           48mm L     45mm L     40mm L            38mm L         36mm L        30.5mm L          26mm L
  180uF                      48mm L     45mm L            43mm L         38mm L        32.5mm L          28mm L
  200uF                                 48mm L            45mm L         43mm L        35.5mm L          30mm L          27mm L
  220uF                                 52mm L            48mm L         45mm L        36.0mm L          32mm L          29mm L
  250uF                                                                  52mm L        43.5mm L          35mm L          30mm L
  300uF                                                                                                  41mm L          36mm L
 Other values or size is available upon request

                                            Supertech Copyright
