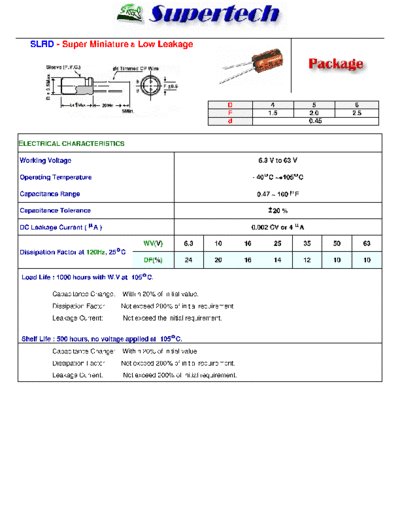

Image preview - the first page of the document
![S-Tech [radial thru-hole] SLRD Series](/pics/5c2e0ac24c19e.gif)
>> Download S-Tech [radial thru-hole] SLRD Series documenatation <<
Text preview - extract from the document
SLRD - Super Miniature & Low Leakage
D 4 5 6
F 1.5 2.0 2.5
d 0.45
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 63 V
Operating Temperature - 40 C ~+105 C
Capacitance Range 0.47 ~ 100 F
Capacitance Tolerance 20 %
DC Leakage Current ( A) 0.002 CV or 4 A
WV(V) 6.3 10 16 25 35 50 63
Dissipation Factor at 120Hz, 25 C
DF(%) 24 20 16 14 12 10 10
Load Life : 1000 hours with W.V at 105 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 105 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 105 C DxL(mm)
V 6.3 10 16 25 35 50 63
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 4x7 9 4x7 9
1 4x7 14 4x7 14
2.2 4x7 21 4x7 21
3.3 4x7 26 4x7 29
4.7 4x7 35
10 4x7 35 5x7 43 5x7 47
22 4x7 43 4x7 54 5x7 60 6x7 74
33 5x7 60 5x7 66 6x7 84 6x7 90
47 5x7 72 5x7 90 6x7 101
100 5x7 100 6x7 120
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
