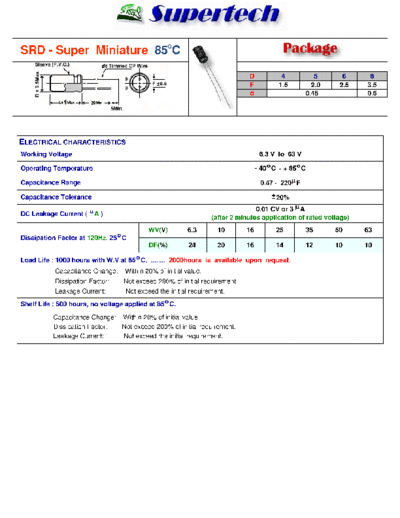

Image preview - the first page of the document
![S-Tech [radial thru-hole] SRD Series](/pics/5c2e0acea342a.gif)
>> Download S-Tech [radial thru-hole] SRD Series documenatation <<
Text preview - extract from the document
SRD - Super Miniature 85oC
D 4 5 6 8
F 1.5 2.0 2.5 3.5
d 0.45 0.5
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 63 V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.47 - 220 F
Capacitance Tolerance 20%
0.01 CV or 3 A
DC Leakage Current ( A)
(after 2 minutes application of rated voltage)
WV(V) 6.3 10 16 25 35 50 63
Dissipation Factor at 120Hz, 25 C
DF(%) 24 20 16 14 12 10 10
Load Life : 1000 hours with W.V at 85 C. ........ 2000hours is available upon request.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C DxL(mm)
V
6.3 10 16 25 35 50 63
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 4x7 5 4x7 6
1 4x7 10 4x7 13
2.2 4x7 19 4x7 21
3.3 4x7 24 4x7 26
4.7 4x7 24 4x7 24 4x7 29 5x7 33
10 4x7 29 4x7 36 5x7 44
22 4x7 34 4x7 38 4x7 44 5x7 51 5x7 57
33 4x7 42 4x7 47 4x7 57 5x7 63
47 4x7 50 4x7 59 5x7 68 6x7 75
8x7
100 5x7 77 5x7 80 6x7 90 120
8x9
8x7
220 6x7 80 6x7 90 8x9 190
* Other values is available upon request.
* Any change and modification on case size may be adopted without notice.
