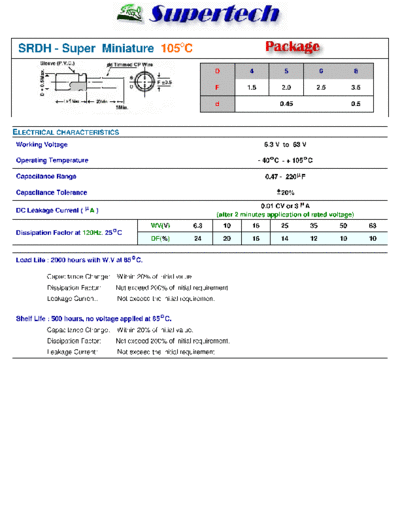

Image preview - the first page of the document
![S-Tech [radial thru-hole] SRDH Series](/pics/5c2e0ad42680c.gif)
>> Download S-Tech [radial thru-hole] SRDH Series documenatation <<
Text preview - extract from the document
SRDH - Super Miniature 105oC
D 4 5 6 8
F 1.5 2.0 2.5 3.5
d 0.45 0.5
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3 V to 63 V
Operating Temperature - 40 C ~ + 105 C
Capacitance Range 0.47 - 220 F
Capacitance Tolerance 20%
0.01 CV or 3 A
DC Leakage Current ( A)
(after 2 minutes application of rated voltage)
WV(V) 6.3 10 16 25 35 50 63
Dissipation Factor at 120Hz, 25 C
DF(%) 24 20 16 14 12 10 10
Load Life : 2000 hours with W.V at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Ripple Current: mA R.M.S. at 120Hz 105 C DxL(mm)
V
6.3 10 16 25 35 50 63
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 4x7 4 4x7 5
1 4x7 9 4x7 11
2.2 4x7 19 4x7 21
3.3 4x7 24 4x7 26
4.7 4x7 24 5x7 29 5x7 33
10 4x7 29 5x7 32 5x7 36 6x7 44
22 4x7 34 5x7 38 5x7 45 6x7 51 6x7 60 8x7 65
33 5x7 42 5x7 47 6x7 60 6x7 65 8x7 72
47 5x7 50 6x7 65 6x7 70 8x7 78
100 6x7 77 6x7 87 6x7 90
220 8x7 130 8x7 140
* Other values is available upon request.
