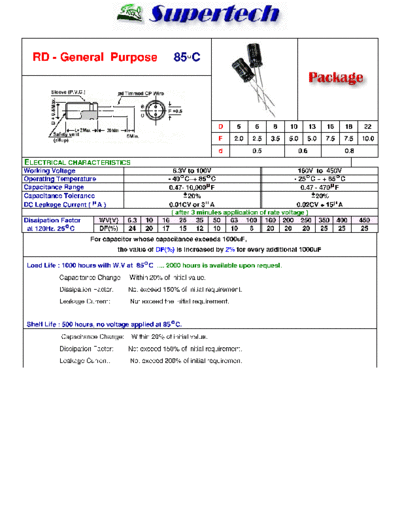

Image preview - the first page of the document
![S-Tech [radial thru-hole] RD Series](/pics/5c2e0add25c55.gif)
>> Download S-Tech [radial thru-hole] RD Series documenatation <<
Text preview - extract from the document
RD - General Purpose 85 C
D 5 6 8 10 13 16 18 22
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10.0
d 0.5 0.6 0.8
ELECTRICAL CHARACTERISTICS
Working Voltage 6.3V to 100V 160V to 450V
Operating Temperature - 40 C~+ 85 C - 25 C ~ + 85 C
Capacitance Range 0.47- 10,000 F 0.47 - 470 F
Capacitance Tolerance 20% 20%
DC Leakage Current ( A ) 0.01CV or 3 A 0.02CV + 15 A
( after 3 minutes application of rate voltage )
Dissipation Factor WV(V) 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
at 120Hz, 25 C DF(%) 24 20 17 15 12 10 10 8 20 20 20 25 25 25
For capacitor whose capacitance exceeds 1000uF,
the value of DF(%) is increased by 2% for every additional 1000uF
Load Life : 1000 hours with W.V at 85 C .... 2000 hours is available upon request.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 150% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Ripple Current: mA R.M.S. at 120Hz 85 C 6.3V ~ 100V DxL(mm)
V
6.3 10 16 25 35 50 63 100
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 5x11 7 5x11 8 5x11 1
1 5x11 13 5x11 15 5x11 21
2.2 5x11 23 5x11 30 5x11 35
3.3 5x11 35 5x11 38 5x11 45
4.7 5x11 41 5x11 43 5x11 50
10 5x11 58 5x11 60 5x11 63 6x11 70
22 5x11 75 5x11 80 5x11 90 5x11 95 6x11 110 8x12 135
33 5x11 80 5x11 88 5x11 95 5x11 110 6x11 130 6x11 140 8x14 185
47 5x11 105 5x11 115 5x11 120 6x11 135 6x11 160 8x12 190 10x16 235
100 5x11 125 5x11 140 6x11 175 6x11 200 8x12 215 8x12 270 10x13 300 10x20 375
220 6x11 200 6x11 250 6x11 280 8x12 340 8x16 390 10x16 435 10x20 490 13x26 629
330 6x11 280 8x12 310 8x12 380 8x12 450 10x16 500 10x20 590 13x21 670 16x26 726
470 8x12 360 8x12 400 8x14 450 8x16 550 10x20 680 13x21 760 13x26 880 16x31 880
1000 8x14 580 8x14 660 10x16 800 10x21 970 13x21 1180 16x26 1350 16x32 1350 22x36 942
2200 10x20 1020 10x20 1090 13x21 1320 13x26 1570 16x26 1810 18x32 2110 18x40 2200
3300 13x21 1200 13x21 1440 13x26 1670 16x26 2000 16x36 2300 18x36 2540
4700 13x21 1500 13x26 1800 16x26 2120 16x32 2440 18x36 2740 22x41 2860
6800 16x26 1920 16x26 2250 16x32 2540 18x36 2900 22x41 2860
10000 16x31 2370 16x36 2710 18x36 2950 22x41 3080
Ripple Current: mA R.M.S. at 120Hz 85 C 160V ~ 450V DxL(mm)
V
160 200 250 350 400 450
uF
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
0.47 6x11 13 6x11 14 6x11 15 8x11 15 8x12 15 8x12 13
1 6x11 19 6x11 20 6x11 22 8x12 22 8x12 23 8x12 19
2.2 6x11 28 6x11 30 8x12 33 10x13 32 10x16 33 10x16 31
3.3 8x12 35 8x12 37 8x14 46 10x13 43 10x16 45 10x16 41
4.7 8x12 41 8x14 50 10x13 55 10x16 50 10x17 60 10x21 50
10 10x13 70 10x13 80 10x16 95 10x21 95 13x21 110 13x21 80
22 10x15 120 10x20 150 10x21 180 13x21 150 13x26 170 16x26 140
33 10x20 170 10x20 200 13x21 210 13x26 200 16x26 200 16x31 190
47 13x21 220 13x21 240 13x26 280 16x26 220 16x33 270 16x36 250
100 13x26 350 16x26 360 16x33 440 18x40 420
220 16x36 580 18x36 730
330 18x36 830 22x30 1290
470 18x40 863 22x41 1481
* Other values are available upon request.
* Any change and modification on case size may be adopted without notice.
