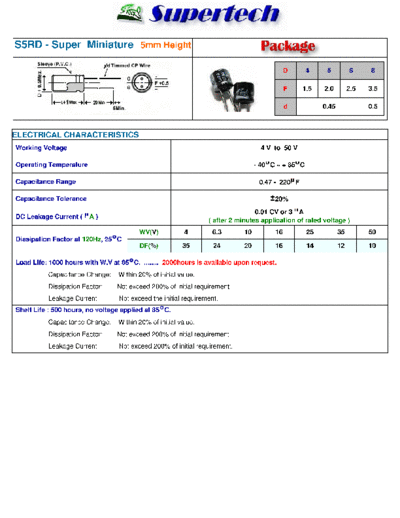

Image preview - the first page of the document
![S-Tech [radial thru-hole] S5RD Series](/pics/5c2e0ae22f897.gif)
>> Download S-Tech [radial thru-hole] S5RD Series documenatation <<
Text preview - extract from the document
S5RD - Super Miniature 5mm Height
D 4 5 6 8
F 1.5 2.0 2.5 3.5
d 0.45 0.5
ELECTRICAL CHARACTERISTICS
Working Voltage 4 V to 50 V
Operating Temperature - 40 C ~ + 85 C
Capacitance Range 0.47 - 220 F
Capacitance Tolerance 20%
0.01 CV or 3 A
DC Leakage Current ( A)
( after 2 minutes application of rated voltage )
WV(V) 4 6.3 10 16 25 35 50
Dissipation Factor at 120Hz, 25 C
DF(%) 35 24 20 16 14 12 10
Load Life: 1000 hours with W.V at 85 C. ........ 2000hours is available upon request.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed the initial requirement.
Shelf Life : 500 hours, no voltage applied at 85 C.
Capacitance Change: Within 20% of initial value.
Dissipation Factor: Not exceed 200% of initial requirement.
Leakage Current: Not exceed 200% of initial requirement.
Case Size (DxL: mm)
uF V 4 6.3 10 16 25 35 50
0.47 4x5
1 4x5
2.2 4x5
3.3 4x5
4.7 4x5 4x5 5x5
10 4x5 5x5 5x5 6x5
22 4x5 4x5 5x5 5x5 6x5
3 4x5 4x5 5x5 5x5 6x5
47 4x5 5x5 5x5 6x5 6x5
100 5x5 6x5 6x5 6x5
220 6x5 6x5 8x5 8x5
Permissible Ripple Current (mA)
uF V 4 6.3 10 16 25 35 50
0.47 5
1 10
2.2 16
3.3 16
4.7 22 22 23
10 28 28 30 35
22 29 35 39 55 60
33 26 38 43 60 65
47 34 46 65 70 80
100 61 71 80 91
220 82 91 120 145
