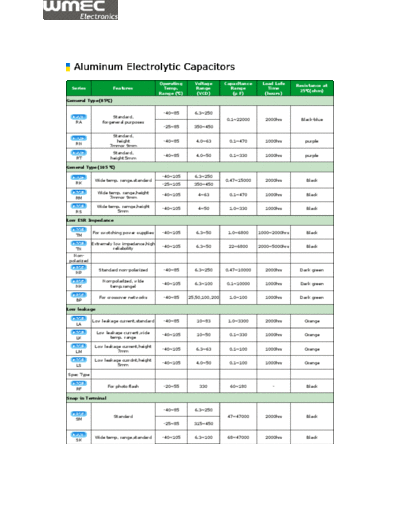

Image preview - the first page of the document
>> Download Wmec Series Table documenatation <<
Text preview - extract from the document
Operating Voltage Capacltance Load Lofe
Resistance at
Series Features Temp. Range Range Time
25(ohm)
Range () (VCD) ( F) (hours)
Gemeral Type(85)
-40~85 6.3~250
Standard,
0.1~22000 2000hrs Black-blue
RA forgeneral purposes
-25~85 350~450
Standard,
height -40~85 4.0~63 0.1~470 1000hrs purple
RN
7mmor 9mm
Standard,
-40~85 4.0~50 0.1~330 1000hrs purple
RT height 5mm
General Type(105 )
-40~105 6.3~250
Wide temp. range.standard 0.47~15000 2000hrs Black
RK -25~105 350~450
Wide temp. range,height
-40~105 4~63 0.1~470 1000hrs Black
RM 7mmor 9mm
Wide temp. ramge,height
-40~105 4~50 1.0~330 1000hrs Black
RS 5mm
Low ESR Impedance
For swotching power supplies -40~105 6.3~50 1.0~6800 1000~2000hrs Black
TM
Extremely low impedance,high
-40~105 6.3~50 22~6800 2000~5000hrs Black
TN reliabolity
Non-
polarized
Standard non-polarized -40~85 6.3~250 0.47~10000 2000hrs Dark green
NP
Non-polarlzed, wlde
-40~105 6.3~100 0.1~10000 1000hrs Dark green
NK temp.rangel
For crossover networks -40~85 25,50,100,200 1.0~100 1000hrs Dark green
BP
Low leakage
Low leakage current,standard -40~85 10~83 1.0~3300 2000hrs Orange
LA
Low leakage current,wide
-40~105 10~50 0.1~330 1000hrs Orange
LK temp. range
Low leakage current,height
-40~105 6.3~63 0.1~100 1000hrs Orange
LM 7mm
Low leakage currdnt,height
-40~105 4.0~50 0.1~100 1000hrs Orange
LS 5mm
Spec Type
For photo flash -20~55 330 60~180 - Black
RF
Snap-in Terminal
-40~85 6.3~250
Standard 47~47000 2000hrs Black
SM
-25~85 315~450
Wide temp, range,standard -40~105 6.3~100 68~47000 2000hrs Black
SK
