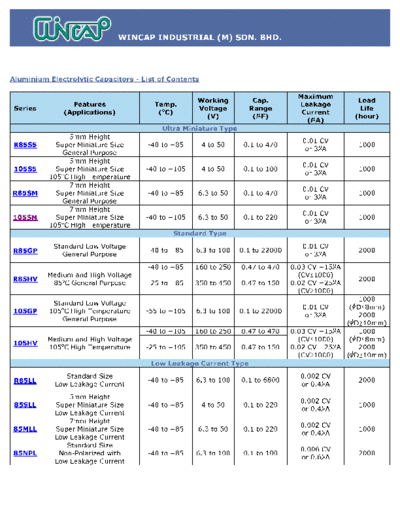

Image preview - the first page of the document
>> Download Wincap Series Table documenatation <<
Text preview - extract from the document
WINCAP INDUSTRIAL (M) SDN. BHD.
Aluminium Electrolytic Capacitors - List of Contents
Maximum
Working Cap. Load
Features Temp. Leakage
Series Voltage Range Life
(Applications) (oC) Current
(V) ( F) (hour)
( A)
Ultra Miniature Type
5mm Height
0.01 CV
R85S5 Super Miniature Size -40 to +85 4 to 50 0.1 to 470 1000
or 3 A
General Purpose
5mm Height
0.01 CV
105S5 Super Miniature Size -40 to +105 4 to 50 0.1 to 100 1000
or 3 A
105oC High Temperature
7mm Height
0.01 CV
R85SM Super Miniature Size -40 to +85 6.3 to 50 0.1 to 470 1000
or 3 A
General Purpose
7mm Height
0.01 CV
105SM Super Miniature Size -40 to +105 6.3 to 50 0.1 to 220 1000
or 3 A
105oC High Temperature
Standard Type
Standard Low Voltage 0.01 CV
R85GP -40 to +85 6.3 to 100 0.1 to 22000 2000
General Purpose or 3 A
-40 to +85 160 to 250 0.47 to 470 0.03 CV +15 A
Medium and High Voltage (CV 1000)
R85HV 2000
85oC General Purpose -25 to +85 350 to 450 0.47 to 150 0.02 CV +25 A
(CV 1000)
1000
Standard Low Voltage
0.01 CV ( D 8mm)
105GP 105oC High Temperature -55 to +105 6.3 to 100 0.1 to 22000
or 3 A 2000
General Purpose
( D 10mm)
-40 to +105 160 to 250 0.47 to 470 0.03 CV +15 A 1000
Medium and High Voltage (CV 1000) ( D 8mm)
105HV
105oC High Temperature -25 to +105 350 to 450 0.47 to 150 0.02 CV +25 A 2000
(CV 1000) ( D 10mm)
Low Leakage Current Type
Standard Size 0.002 CV
R85LL -40 to +85 6.3 to 100 0.1 to 6800 2000
Low Leakage Current or 0.4 A
5mm Height
0.002 CV
85SLL Super Miniature Size -40 to +85 4 to 50 0.1 to 220 1000
or 0.4 A
Low Leakage Current
7mm Height
0.002 CV
85MLL Super Miniature Size -40 to +85 6.3 to 50 0.1 to 220 1000
or 0.4 A
Low Leakage Current
Standard Size
0.006 CV
85NPL Non-Polarized with -40 to +85 6.3 to 100 0.1 to 100 2000
or 0.6 A
Low Leakage Current
Non-Polarized Type
Non-Polarized 0.03 CV
R85NP -40 to +85 6.3 to 100 0.47 to 6800 2000
Standard or 4 A
Non-Polarized 0.03 CV
105NP -40 to +105 6.3 to 100 0.47 to 6800 1000
105oC High Temperature or 4 A
5mm Height
0.05 CV
85NPS Super Miniature Size -40 to +85 6.3 to 50 0.1 to 47 1000
or 10 A
Non-Polarized
7mm Height
0.05 CV
85NPM Super Miniature Size -40 to +85 6.3 to 50 0.1 to 220 1000
or 10 A
Non-Polarized
Standard Size
0.006 CV
85NPL Non-Polarized with -40 to +85 6.3 to 100 0.1 to 100 2000
or 0.6 A
Low Leakage Current
Non-Polarized
0.03 CV
85NPX High Frequency at 1KHz -40 to +85 50 & 100 1 to 220 2000
or 4 A
for Audio Sound Systems
Bi-Polarized for
R85BP Horizontal Deflection -40 to +85 50 2.2 to 15 100 A 3000
Current Correction
Low Impedance & High Ripple Current Type
-55 to +105 6.3 to 100 0.47 to 15000 0.01 CV or 3 A 2000
-40 to +105 160 to 400 0.47 to 330 D 8mm
Low Impedance 0.03 CV +15 A
3000
105LZ & Low E.S.R. at 100KHz (CV 1000)
D=10mm
High Frequency -25 to +105 450 1 to 47 0.02 CV +25 A
5000
(CV 1000)
D 13mm
-40 to +105 160 to 250 1 to 100 0.03 CV +15 A 1000
Medium & High Voltage
(CV 1000) D 8mm
105HR High Ripple Current at
-25 to +105 350 to 400 1 to 22 0.02 CV +25 A 2000
105oC High Temperature
(CV 1000) D 10mm
Snap-In Terminal Type
-40 to +85 6.3 to 250 120 to 120000
Snap-In Terminal 0.02 CV or
SN85G 3000
Standard -25 to +85 350 to 450 56 to 680 3000 A
-40 to +105 6.3 to 250 120 to 82000
Snap-In Terminal 0.02 CV or
SN105 2000
105oC High Temperature -25 to +105 350 to 450 56 to 470 3000 A
Axial Lead Type
-40 to +85 6.3 to 100 0.47 to 15000 0.01 CV or 3 A
-40 to +85 160 to 250 1 to 220 0.03 CV +15 A
Axial Lead Type
A85GP (CV 1000) 2000
General Purpose
-25 to +85 350 to 450 1 to 100 0.02 CV +25 A
(CV 1000)
Axial Lead Type 0.03 CV
A85NP -40 to +85 6.3 to 100 0.47 to 6800 2000
Non-Polarized or 4 A
