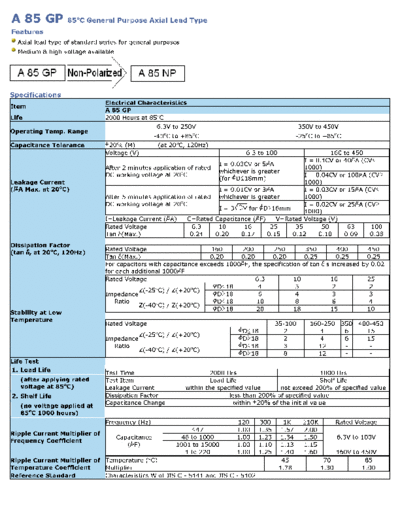

Image preview - the first page of the document
![Wincap [axial] A85GP Series](/pics/5c2e0ce53cb85.gif)
>> Download Wincap [axial] A85GP Series documenatation <<
Text preview - extract from the document
A 85 GP 85oC General Purpose Axial Lead Type
Features
Axial lead type of standard series for general purposes
Medium & high voltage available
Specifications
Electrical Characteristics
Item
A 85 GP
Life 2000 Hours at 85oC
6.3V to 250V 350V to 450V
Operating Temp. Range
-40oC to +85oC -25oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
Voltage (V) 6.3 to 100 160 to 450
I = 0.1CV or 40 A (CV
I = 0.03CV or 5 A
After 2 minutes application of rated 1000)
o whichever is greater
DC working voltage at 20 C I = 0.04CV or 100 A (CV
(for D 18mm)
Leakage Current 1000)
( A Max. at 20oC) I = 0.01CV or 3 A I = 0.03CV or 15 A (CV
After 5 minutes application of rated whichever is greater 1000)
DC working voltage at 20oC I = 0.02CV or 25 A (CV
I=3 for D 18mm
1000)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 100
Tan (Max.) 0.24 0.20 0.17 0.15 0.12 0.10 0.09 0.08
Dissipation Factor
Rated Voltage 160 200 250 350 400 450
(tan , at 20oC, 120Hz)
Tan (Max.) 0.20 0.20 0.20 0.25 0.25 0.25
For capacitors with capacitance exceeds 1000 F, the specification of tan is increased by 0.02
for each additional 1000 F
Rated Voltage 6.3 10 16 25
D 18 4 3 2 2
Z(-25oC) / Z(+20oC)
Impedance D 18 6 4 3 3
Ratio o o D 18 10 8 6 4
Z(-40 C) / Z(+20 C)
D 18 20 18 15 10
Stability at Low
Temperature
Rated Voltage 35-100 160-250 350 400-450
o o D 18 2 4 6 15
Z(-25 C) / Z(+20 C)
Impedance D 18 2 4 6 15
Ratio D 18 3 12 - -
Z(-40oC) / Z(+20oC)
D 18 8 12 - -
Life Test
1. Load Life
Test Time 2000 Hrs 1000 Hrs
(after applying rated Test Item Load Life Shelf Life
voltage at 85oC) Leakage Current within the specified value not exceed 200% of specified value
2. Shelf Life Dissipation Factor less than 200% of specified value
Capacitance Change within 20% of the initial value
(no voltage applied at
85oC 1000 hours)
Frequency (Hz) 120 300 1K 10K Rated Voltage
47 1.00 1.35 1.57 2.00
Ripple Current Multiplier of
Capacitance 48 to 1000 1.00 1.23 1.34 1.50 6.3V to 100V
Frequency Coefficient
( F) 1001 to 15000 1.00 1.10 1.13 1.15
1 to 220 1.00 1.25 1.40 1.60 160V to 450V
Ripple Current Multiplier of Temperature (oC) 45 70 85
Temperature Coefficient Multiplier 1.78 1.30 1.00
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 to 13 16 to 18
d 0.6 0.8
D 10 1.0
D=10 1.5
D 13 2.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25 35
Cap. V. Code (006) (010) (016) (025) (035)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
106 10 5x12 40 5x12 45
226 22 5x12 60 5x12 65 5x12 70
336 33 5x12 65 5x12 70 5x12 80 6x12 90
476 47 5x12 80 5x12 85 6x12 100 6x16 120
107 100 5x12 110 6x12 130 6x16 160 6x16 170 8x17 210
227 220 6x16 200 6x16 210 8x17 260 8x17 280 8x20 340
337 330 6x16 250 8x17 300 8x17 320 8x20 380 10x21 460
477 470 8x17 330 8x17 350 8x20 430 10x26 510 10x26 610
108 1000 10x21 600 10x21 640 10x26 770 13x26 900 13x32 1060
228 2200 13x26 1020 13x26 1090 13x32 1180 16x32 1480 16x32 1580
338 3300 13x26 1200 13x32 1390 16x32 1620 16x42 1710 16x42 2050
478 4700 16x32 1500 16x32 1730 16x42 1840 18x41 2170 22x41 2470
688 6800 16x32 1840 16x42 1930 18x41 2310 22x41 2580
109 10000 16x42 2260 18x41 2350 22x41 2620
129 12000 22x41 2340 22x41 2520 22x41 2730
159 15000 22x41 2450 22x41 2730
W.V. 50 63 100 160 200
Cap. V. Code (050) (063) (100) (160) (200)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
474 0.47 5x12 5 5x12 10
105 1 5x12 10 5x12 18 6x12 13 6x12 13
225 2.2 5x12 23 5x12 28 6x16 23 6x16 23
335 3.3 5x12 28 5x12 31 5x12 34 8x17 33 8x17 33
475 4.7 5x12 34 5x12 37 5x12 40 8x17 39 8x17 39
106 10 5x12 50 5x12 55 6x12 60 8x20 60 10x21 70
226 22 6x12 85 6x12 90 8x17 120 10x26 120 13x26 140
336 33 6x16 110 6x16 120 8x17 150 13x26 170 13x32 170
476 47 6x16 130 8x17 160 8x20 190 13x32 230 13x32 230
107 100 8x17 220 8x20 260 10x26 340 16x42 430 16x42 430
227 220 10x21 410 10x26 480 13x26 560 22x41 680 22x41 680
337 330 10x26 560 13x26 650 13x32 750
477 470 13x26 730 13x32 840 16x32 970
108 1000 16x32 1260 16x32 1330 22x41 1540
228 2200 18x41 1920 22x41 2160
338 3300 22x41 2340
W.V. 250 350 400 450
Cap. V. Code (250) (350) (400) (450)
Code
DxL mA DxL mA DxL mA DxL mA
105 1 6x16 14 6x16 12 8x17 14 8x17 14
225 2.2 8x17 27 8x17 24 8x20 28 10x21 31
335 3.3 8x17 33 8x20 32 10x21 38 10x21 38
475 4.7 8x20 45 10x21 46 10x21 46 10x26 50
106 10 10x21 70 13x26 85 13x26 85 13x26 85
226 22 13x26 140 13x32 140 16x32 150 16x32 150
336 33 13x32 190 16x32 190 16x42 210 18x41 230
476 47 16x32 260 16x42 260 18x41 290 22x41 310
107 100 16x42 430 22x41 420 22x41 420
227 220 22x41 680
