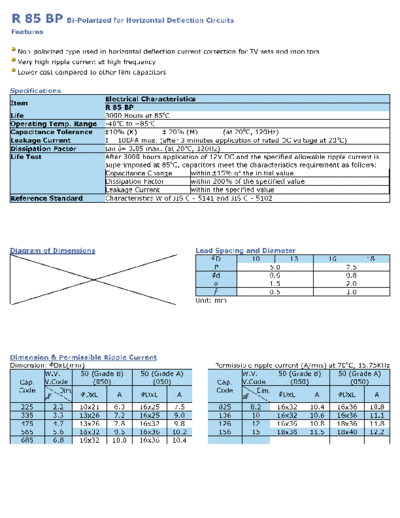

Image preview - the first page of the document
![Wincap [bi-polar radial] R85BP Series](/pics/5c2e0cf1a14eb.gif)
>> Download Wincap [bi-polar radial] R85BP Series documenatation <<
Text preview - extract from the document
R 85 BP Bi-Polarized for Horizontal Deflection Circuits
Features
Non-polarized type used in horizontal deflection current correction for TV sets and monitors
Very high ripple current at high frequency
Lower cost compared to other film capacitors
Specifications
Electrical Characteristics
Item
R 85 BP
Life 3000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
Leakage Current I = 100 A max. (after 3 minutes application of rated DC voltage at 20 oC)
Dissipation Factor tan = 0.05 max. (at 20oC, 120Hz)
Life Test After 3000 hours application of 12V DC and the specified allowable ripple current is
superimposed at 85oC, capacitors meet the characteristics requirement as follows:
Capacitance Change within 15% of the initial value
Dissipation Factor within 200% of the specified value
Leakage Current within the specified value
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 10 13 16 18
P 5.0 7.5
d 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Permissible ripple current (A/rms) at 70oC, 15.75KHz
W.V. 50 (Grade B) 50 (Grade A) W.V. 50 (Grade B) 50 (Grade A)
Cap. V.Code (050) (050) Cap. V.Code (050) (050)
Code Code
DxL A DxL A DxL A DxL A
225 2.2 10x21 6.0 16x25 7.5 825 8.2 16x32 10.4 16x36 10.8
335 3.3 13x26 7.2 16x25 9.0 106 10 16x32 10.6 16x36 11.1
475 4.7 13x26 7.8 16x32 9.8 126 12 16x36 10.8 18x36 11.8
565 5.6 16x32 9.6 16x36 10.2 156 15 18x36 11.5 18x40 12.2
685 6.8 16x32 10.0 16x36 10.4
