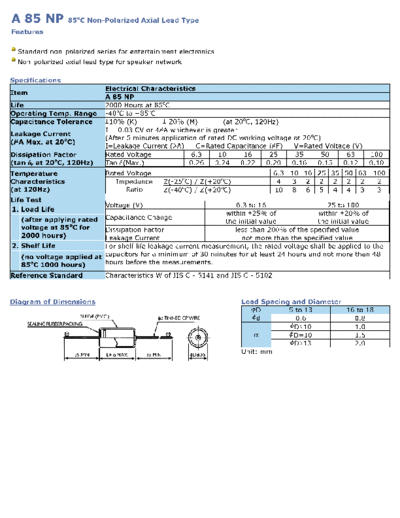

Image preview - the first page of the document
![Wincap [non-polar axial] A85NP Series](/pics/5c2e0cfccff0e.gif)
>> Download Wincap [non-polar axial] A85NP Series documenatation <<
Text preview - extract from the document
A 85 NP 85oC Non-Polarized Axial Lead Type
Features
Standard non-polarized series for entertainment electronics
Non-polarized axial lead type for speaker network
Specifications
Electrical Characteristics
Item
A 85 NP
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.03 CV or 4 A whichever is greater
Leakage Current
(After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100
(tan , at 20oC, 120Hz) Tan (Max.) 0.26 0.24 0.22 0.20 0.16 0.15 0.12 0.10
Temperature Rated Voltage 6.3 10 16 25 35 50 63 100
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 10 8 6 5 4 4 3 3
Life Test
Voltage (V) 6.3 to 16 25 to 100
1. Load Life
within 25% of within 20% of
(after applying rated Capacitance Change the initial value the initial value
voltage at 85oC for Dissipation Factor less than 200% of the specified value
2000 hours) Leakage Current not more than the specified value
2. Shelf Life For shelf life leakage current measurement, the rated voltage shall be applied to the
(no voltage applied at capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
85oC 1000 hours) hours before the measurements.
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 to 13 16 to 18
d 0.6 0.8
D 10 1.0
D=10 1.5
D 13 2.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
106 10 5x12 42
226 22 5x12 57 6x12 65
336 33 5x12 64 6x12 70 6x12 80
476 47 5x12 76 6x12 95 6x12 95
107 100 6x12 125 6x12 125 6x16 160 6x16 160
157 150 6x16 170 6x16 170 6x16 210 8x17 275
227 220 6x16 215 6x16 215 8x17 275 8x20 305
337 330 6x16 260 8x20 345 8x20 375 10x26 450
477 470 8x17 370 10x21 420 10x21 485 13x26 540
687 680 10x21 530 10x21 550 10x26 680 16x27 800
108 1000 10x21 650 10x26 720 13x26 855 16x27 950
159 1500 10x26 900 13x26 1000 16x27 1280 16x32 1140
228 2200 13x26 1160 16x27 1280 16x32 1510 18x41 1620
338 3300 16x27 1570 16x32 1690 18x41 1980
478 4700 16x32 2020 18x41 2160
688 6800 18x41 2600
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
474 0.47 5x12 11 5x12 14
105 1 5x12 17 5x12 21
225 2.2 5x12 25 6x12 34
335 3.3 5x12 27 5x12 28 6x12 39
475 4.7 5x12 34 6x12 34 6x16 50
106 10 5x12 43 6x12 52 6x16 57 6x16 71
226 22 6x12 73 6x16 89 6x16 95 8x20 135
336 33 6x16 100 6x16 105 8x17 135 10x26 220
476 47 6x16 120 8x17 150 8x20 180 13x26 260
107 100 8x20 230 10x21 265 10x26 320 16x27 425
157 150 10x21 320 10x26 355 13x26 440 16x32 565
227 220 10x26 410 13x26 480 16x27 575 18x41 720
337 330 10x26 505 16x27 650 16x32 655
477 470 13x26 655 16x32 835 18x41 965
687 680 16x27 900 18x41 965
108 1000 16x32 1140
159 1500 18x41 1380
