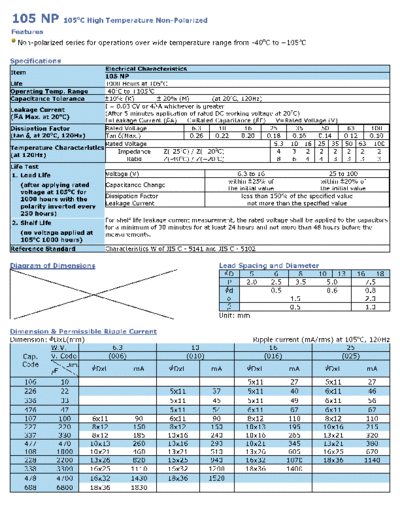

Image preview - the first page of the document
![Wincap [non-polar radial] 105NP Series](/pics/5c2e0d04346b4.gif)
>> Download Wincap [non-polar radial] 105NP Series documenatation <<
Text preview - extract from the document
105 NP 105oC High Temperature Non-Polarized
Features
Non-polarized series for operations over wide temperature range from -40oC to +105oC
Specifications
Electrical Characteristics
Item
105 NP
Life 1000 Hours at 105oC
Operating Temp. Range -40oC to +105oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.03 CV or 4 A whichever is greater
Leakage Current
o (After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20 C)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100
(tan , at 20oC, 120Hz) Tan (Max.) 0.26 0.22 0.20 0.18 0.16 0.14 0.12 0.10
Rated Voltage 6.3 10 16 25 35 50 63 100
Temperature Characteristics
Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2 2 2
(at 120Hz)
Ratio Z(-40oC) / Z(+20oC) 8 6 4 4 3 3 3 3
Life Test
1. Load Life Voltage (V) 6.3 to 16 25 to 100
within 25% of within 20% of
(after applying rated Capacitance Change
the initial value the initial value
voltage at 105oC for
Dissipation Factor less than 150% of the specified value
1000 hours with the
polarity inverted every Leakage Current not more than the specified value
250 hours)
For shelf life leakage current measurement, the rated voltage shall be applied to the capacitors
2. Shelf Life
for a minimum of 30 minutes for at least 24 hours and not more than 48 hours before the
(no voltage applied at measurements.
105oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18
P 2.0 2.5 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
106 10 5x11 27 5x11 27
226 22 5x11 37 5x11 40 6x11 46
336 33 5x11 45 5x11 49 6x11 56
476 47 5x11 54 6x11 67 6x11 67
107 100 6x11 90 6x11 90 8x12 110 8x12 110
227 220 8x12 150 8x12 150 10x13 195 10x16 215
337 330 8x12 185 10x16 240 10x16 265 13x21 320
477 470 10x13 260 10x16 290 10x21 345 13x21 380
108 1000 10x21 460 13x21 510 13x26 605 16x25 670
228 2200 13x26 820 16x25 940 16x32 1070 18x36 1140
338 3300 16x25 1110 16x32 1200 18x36 1400
478 4700 16x32 1430 18x36 1520
688 6800 18x36 1830
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
474 0.47 5x11 7 5x11 8
105 1 5x11 10 5x11 12
225 2.2 5x11 15 5x11 16 6x11 20
335 3.3 5x11 18 5x11 20 6x11 25
475 4.7 5x11 21 5x11 22 6x11 24 6x11 30
106 10 5x11 30 6x11 37 6x11 40 8x12 50
226 22 6x11 51 8x12 63 8x12 68 10x16 97
336 33 8x12 72 8x12 77 10x13 98 13x21 140
476 47 8x12 86 10x13 105 10x16 130 13x21 170
107 100 10x16 160 10x21 190 13x21 225 16x25 300
227 220 13x21 290 13x26 340 16x25 405 18x36 510
337 330 13x21 350 16x25 460 16x32 535 18x36 590
477 470 13x26 465 16x32 590 18x36 680
108 1000 16x32 805
