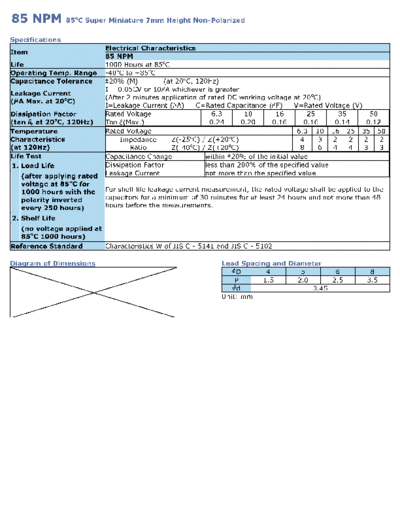

Image preview - the first page of the document
![Wincap [non-polar radial] 85NPM Series](/pics/5c2e0d0ba3424.gif)
>> Download Wincap [non-polar radial] 85NPM Series documenatation <<
Text preview - extract from the document
85 NPM 85oC Super Miniature 7mm Height Non-Polarized
Specifications
Electrical Characteristics
Item
85 NPM
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.05CV or 10 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.16 0.16 0.14 0.12
Temperature Rated Voltage 6.3 10 16 25 35 50
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 8 6 4 4 3 3
Life Test Capacitance Change within 20% of the initial value
1. Load Life Dissipation Factor less than 200% of the specified value
(after applying rated Leakage Current not more than the specified value
voltage at 85oC for
1000 hours with the For shelf life leakage current measurement, the rated voltage shall be applied to the
polarity inverted capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
every 250 hours) hours before the measurements.
2. Shelf Life
(no voltage applied at
85oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6 8
P 1.5 2.0 2.5 3.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25 35 50
Cap. V.Code (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x7 1.0
224 0.22 4x7 2.3
334 0.33 4x7 3.5
474 0.47 4x7 5.0
105 1 4x7 10
225 2.2 4x7 14
335 3.3 4x7 16 5x7 20
475 4.7 4x7 18 5x7 21 5x7 22 5x7 25
106 10 4x7 24 5x7 30 5x7 33 6.3x7 37 8x7 44
226 22 5x7 40 6.3x7 51 6.3x7 53 6.3x7 57 8x7 65
336 33 5x7 42 6.3x7 56 6.3x7 63 6.3x7 68 8x7 76
476 47 6.3x7 58 6.3x7 67 6.3x7 75 8x7 87
107 100 6.3x7 90 8x7 110 8x7 125
227 220 8x7 140 8x7 155
