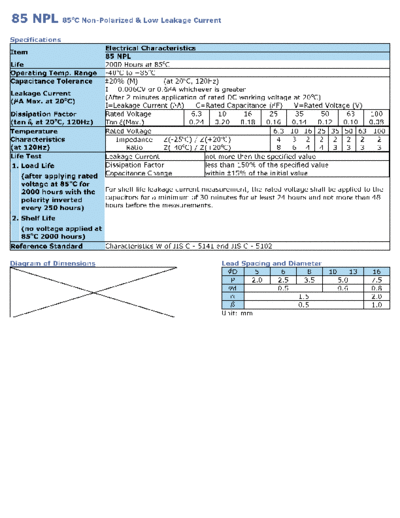

Image preview - the first page of the document
![Wincap [non-polar radial] 85NPL Series](/pics/5c2e0d108a996.gif)
>> Download Wincap [non-polar radial] 85NPL Series documenatation <<
Text preview - extract from the document
85 NPL 85oC Non-Polarized & Low Leakage Current
Specifications
Electrical Characteristics
Item
85 NPL
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.006CV or 0.6 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.18 0.16 0.14 0.12 0.10 0.08
Temperature Rated Voltage 6.3 10 16 25 35 50 63 100
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 8 6 4 4 3 3 3 3
Life Test Leakage Current not more than the specified value
1. Load Life Dissipation Factor less than 150% of the specified value
(after applying rated Capacitance Change within 15% of the initial value
voltage at 85oC for
2000 hours with the For shelf life leakage current measurement, the rated voltage shall be applied to the
polarity inverted capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
every 250 hours) hours before the measurements.
2. Shelf Life
(no voltage applied at
85oC 2000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16
P 2.0 2.5 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25
Cap. V.Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
225 2.2 5x11 15
335 3.3 5x11 18
475 4.7 5x11 22
685 6.8 5x11 25 6x11 30
106 10 5x11 27 6x11 34 6x11 37
156 15 5x11 33 6x11 42 8x12 52
226 22 5x11 36 6x11 46 8x12 59 10x13 74
336 33 6x11 51 6x11 56 8x12 72 10x16 101
476 47 6x11 61 8x12 77 10x13 102 10x21 130
686 68 8x12 85 10x13 110 10x16 135 10x21 157
107 100 8x12 103 10x167 147 10x21 178 13x21 211
W.V. 35 50 63 100
Cap. V.Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
104 0.1 5x11 2.2 5x11 4.4
154 1.5 5x11 3.2 5x11 5.6
224 0.22 5x11 4.8 5x11 6.8
334 0.33 5x11 7.0 5x11 8.4
474 0.47 5x11 8.4 5x11 10
684 0.68 5x11 10 5x11 12
105 1 5x11 12 5x11 13 6x11 16
155 1.5 5x11 15 5x11 15 6x11 20
225 2.2 5x11 16 6x11 20 6x11 20 8x12 28
335 3.3 6x11 23 6x11 25 8x12 29 10x13 40
475 4.7 6x11 27 8x12 34 8x12 34 10x16 53
685 6.8 8x12 38 8x12 41 10x13 49 10x16 64
106 10 8x12 46 10x13 59 10x16 65 10x21 85
156 15 10x13 66 10x16 80 10x21 87 10x21 104
226 22 10x16 89 10x21 105 10x21 105 13x21 140
336 33 10x21 118 10x21 129 13x21 143 13x26 186
476 47 10x21 141 13x21 171 13x21 171 16x25 246
686 68 13x21 188 13x21 206 13x26 224 16x25 296
107 100 13x21 228 13x26 271 16x25 300 16x32 386
