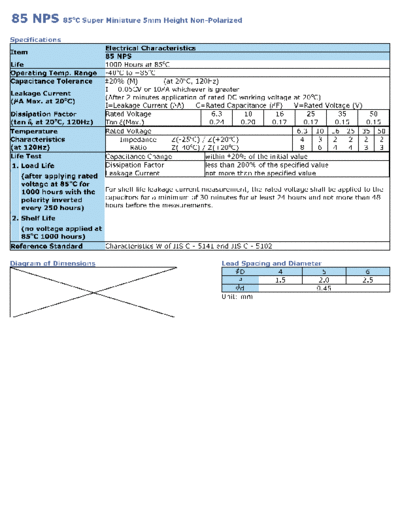

Image preview - the first page of the document
![Wincap [non-polar radial] 85NPS Series](/pics/5c2e0d15eef11.gif)
>> Download Wincap [non-polar radial] 85NPS Series documenatation <<
Text preview - extract from the document
85 NPS 85oC Super Miniature 5mm Height Non-Polarized
Specifications
Electrical Characteristics
Item
85 NPS
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.05CV or 10 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.17 0.17 0.15 0.15
Temperature Rated Voltage 6.3 10 16 25 35 50
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 8 6 4 4 3 3
Life Test Capacitance Change within 20% of the initial value
1. Load Life Dissipation Factor less than 200% of the specified value
(after applying rated Leakage Current not more than the specified value
voltage at 85oC for
1000 hours with the For shelf life leakage current measurement, the rated voltage shall be applied to the
polarity inverted capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
every 250 hours) hours before the measurements.
2. Shelf Life
(no voltage applied at
85oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6
P 1.5 2.0 2.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25 35 50
Cap. V.Code (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x5 1.0
224 0.22 4x5 2.0
334 0.33 4x5 2.8
474 0.47 4x5 4.0
105 1 4x5 8.4
225 2.2 4x5 8.4 4x5 13
335 3.3 5x5 12 5x5 16 5x5 17
475 4.7 4x5 12 5x5 16 5x5 18 6.3x5 20
106 10 4x5 17 5x5 23 6.3x5 27 6.3x5 29
226 22 5x5 28 6.3x5 33 6.3x5 37
336 33 6.3x5 37 6.3x5 41 6.3x5 49
476 47 6.3x5 45 6.3x5 50
