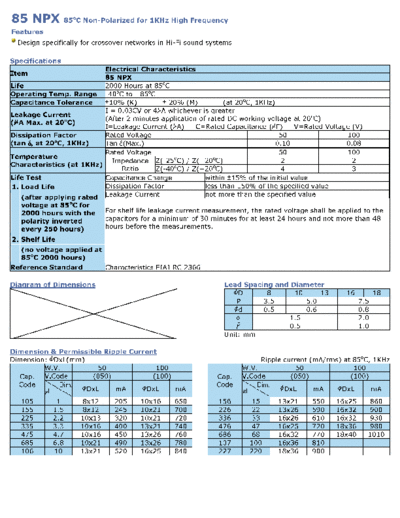

Image preview - the first page of the document
![Wincap [non-polar radial] 85NPX Series](/pics/5c2e0d1a9d662.gif)
>> Download Wincap [non-polar radial] 85NPX Series documenatation <<
Text preview - extract from the document
85 NPX 85oC Non-Polarized for 1KHz High Frequency
Features
Design specifically for crossover networks in Hi-Fi sound systems
Specifications
Electrical Characteristics
Item
85 NPX
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 1KHz)
I = 0.03CV or 4 A whichever is greater
Leakage Current
o (After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20 C)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 50 100
(tan , at 20oC, 1KHz) Tan (Max.) 0.10 0.08
Rated Voltage 50 100
Temperature
Impedance Z(-25oC) / Z(+20oC) 2 2
Characteristics (at 1KHz)
Ratio Z(-40oC) / Z(+20oC) 4 3
Life Test Capacitance Change within 15% of the initial value
1. Load Life Dissipation Factor less than 150% of the specified value
(after applying rated Leakage Current not more than the specified value
o
voltage at 85 C for
2000 hours with the For shelf life leakage current measurement, the rated voltage shall be applied to the
polarity inverted capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
every 250 hours) hours before the measurements.
2. Shelf Life
(no voltage applied at
85oC 2000 hours)
Reference Standard Characteristics EIAJ RC 2366
Diagram of Dimensions Lead Spacing and Diameter
D 8 10 13 16 18
P 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 1KHz
W.V. 50 100 W.V. 50 100
Cap. V.Code (050) (100) Cap. V.Code (050) (100)
Code Code
DxL mA DxL mA DxL mA DxL mA
105 1 8x12 205 10x16 650 156 15 13x21 550 16x25 860
155 1.5 8x12 245 10x21 700 226 22 13x26 590 16x32 900
225 2.2 10x13 320 10x21 720 336 33 16x26 610 16x32 930
335 3.3 10x16 400 13x21 740 476 47 16x25 720 18x36 980
475 4.7 10x16 450 13x26 760 686 68 16x32 770 18x40 1010
685 6.8 10x21 490 13x26 780 107 100 16x36 810
106 10 13x21 520 16x25 840 227 220 18x36 900
