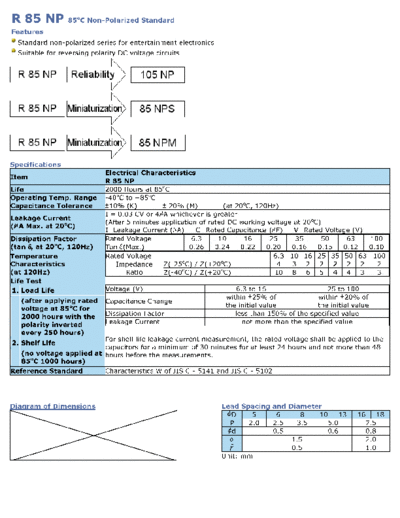

Image preview - the first page of the document
![Wincap [non-polar radial] R85NP Series](/pics/5c2e0d208634b.gif)
>> Download Wincap [non-polar radial] R85NP Series documenatation <<
Text preview - extract from the document
R 85 NP 85oC Non-Polarized Standard
Features
Standard non-polarized series for entertainment electronics
Suitable for reversing polarity DC voltage circuits
Specifications
Electrical Characteristics
Item
R 85 NP
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.03 CV or 4 A whichever is greater
Leakage Current
(After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100
(tan , at 20oC, 120Hz) Tan (Max.) 0.26 0.24 0.22 0.20 0.16 0.15 0.12 0.10
Temperature Rated Voltage 6.3 10 16 25 35 50 63 100
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2 2 2
o o
(at 120Hz) Ratio Z(-40 C) / Z(+20 C) 10 8 6 5 4 4 3 3
Life Test
1. Load Life Voltage (V) 6.3 to 16 25 to 100
within 25% of within 20% of
(after applying rated Capacitance Change
the initial value the initial value
voltage at 85oC for
2000 hours with the Dissipation Factor less than 150% of the specified value
polarity inverted Leakage Current not more than the specified value
every 250 hours)
For shelf life leakage current measurement, the rated voltage shall be applied to the
2. Shelf Life
capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
(no voltage applied at hours before the measurements.
85oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18
P 2.0 2.5 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
106 10 5x11 42 5x11 42
226 22 5x11 57 6x11 65
336 33 5x11 64 5x11 70 6x11 80
476 47 5x11 76 6x11 95 6x11 95
107 100 6x11 125 6x11 125 8x12 160 8x12 160
227 220 8x12 215 8x12 215 10x13 275 10x16 305
337 330 8x12 265 10x13 330 10x16 375 13x21 450
477 470 10x13 370 10x16 410 10x21 485 13x21 540
108 1000 10x21 650 13x21 720 13x26 855 16x25 950
228 2200 13x26 1160 16x25 1280 16x32 1510 18x36 1620
338 3300 16x25 1570 16x32 1690 18x36 1980
478 4700 16x32 2020 18x36 2160
688 6800 18x36 2600
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
474 0.47 5x11 11 5x11 14
105 1 5x11 17 5x11 21
225 2.2 5x11 25 6x11 34
335 3.3 5x11 27 5x11 28 6x11 39
475 4.7 5x11 34 5x11 34 6x11 36 6x11 47
106 10 5x11 45 6x11 52 6x11 57 8x12 71
226 22 6x11 73 8x12 89 8x12 95 10x16 135
336 33 8x12 100 8x12 105 10x13 135 10x21 210
476 47 8x12 120 10x13 150 10x16 180 13x21 240
107 100 10x16 230 10x21 265 13x21 320 16x25 425
227 220 13x21 410 13x26 480 16x25 575 18x36 720
337 330 13x21 505 16x25 650 16x32 655
477 470 13x26 655 16x32 835 18x36 965
108 1000 16x32 1140
